Throttle Body

Component ID: 447
Component : THROTTLE BODY

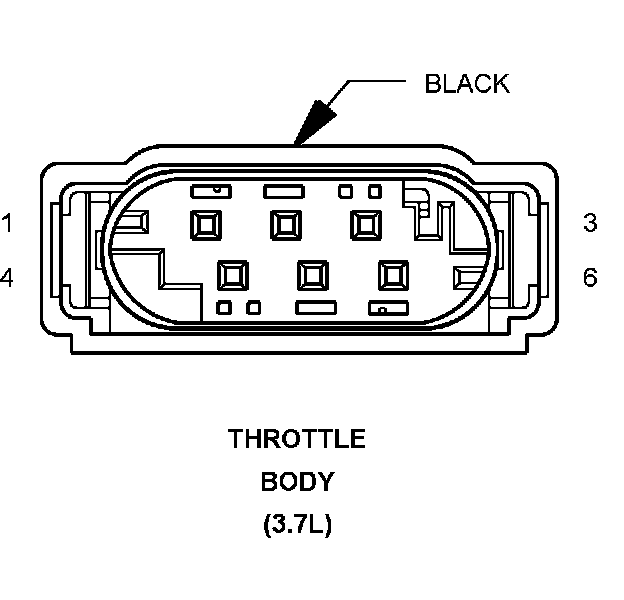

Connector:
Name : THROTTLE BODY
Color : BLACK
# of pins : 6
Qualifier : (3.7L)
Gender : FEMALE




Pin Circuit Description
1 K124 20DB/GY ETC MOTOR (+)
2 K855 20BR/OR 5 VOLT SUPPLY
3 K922 20BR/DB TP SENSOR GROUND
4 K126 20DB/LG ETC MOTOR (-)
5 K122 20DB/GY TP SIGNAL 2
6 K22 20DG/OR TP SIGNAL 1

Component Location - 15




Component Location - 18

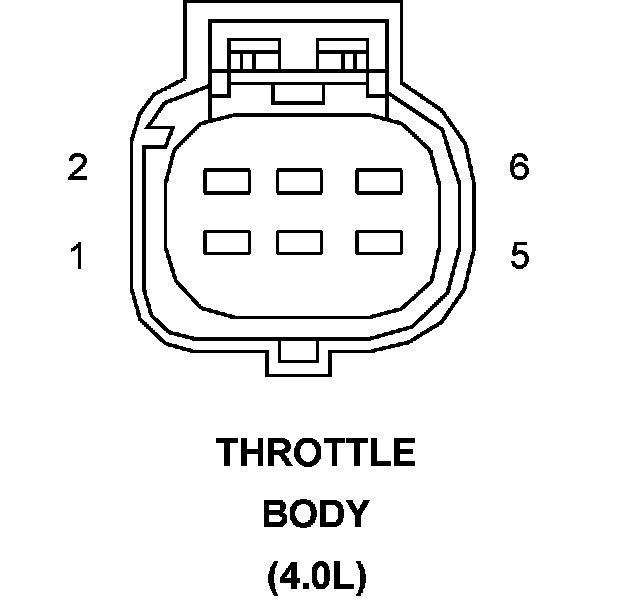

Connector:
Name : THROTTLE BODY
Color : BLACK
# of pins : 6
Qualifier : (4.0L)
Gender : FEMALE




Pin Circuit Description
1 K22 18BR/OR TP SIGNAL 1
2 K855 18BR/OR 5 VOLT SUPPLY
3 K124 18DB/GY ETC MOTOR (+)
4 K122 18BR/DG TP SIGNAL 2
5 K126 18DB/LG ETC MOTOR (-)
6 K922 18BR/DB TP SENSOR GROUND

Component Location - 15




Component Location - 18
