Transponder-Tire Pressure-Left Rear

Component ID: 451
Component : TRANSPONDER-TIRE PRESSURE-LEFT REAR

Connector:
Name : TRANSPONDER-TIRE PRESSURE-LEFT REAR
Color :
# of pins : 6
Gender : FEMALE




Pin Circuit Description
1 F943 18PK/LG FUSED RUN/START RELAY OUTPUT
2 D508 20WT/GY COM-LIN TIRE PRESSURE MONITOR LAN
3 Z919 20BK/RD GROUND
4 -
5 -
6 - -

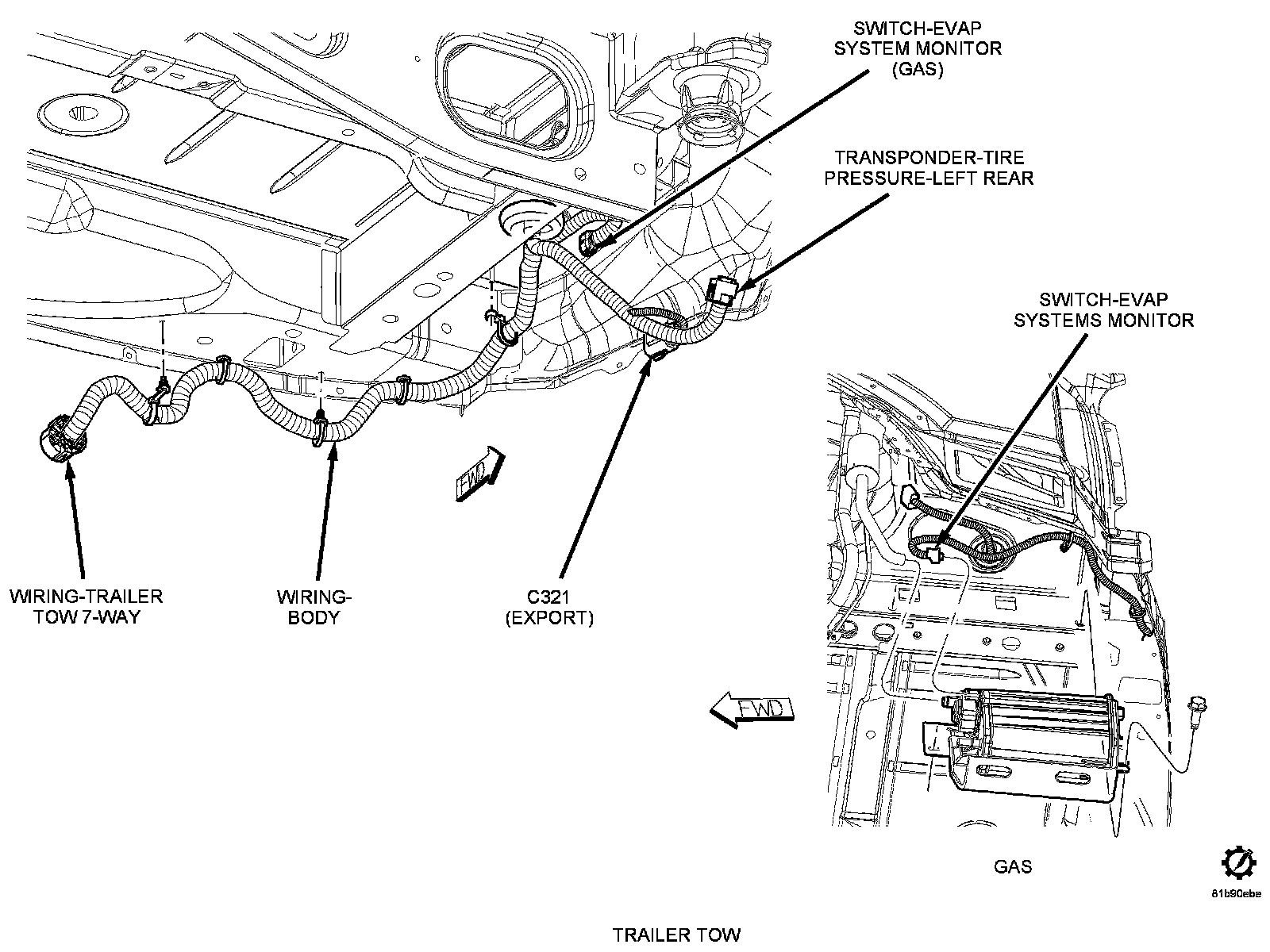

Component Location - 61
