Transponder-Tire Pressure-Right Front

Component ID: 452

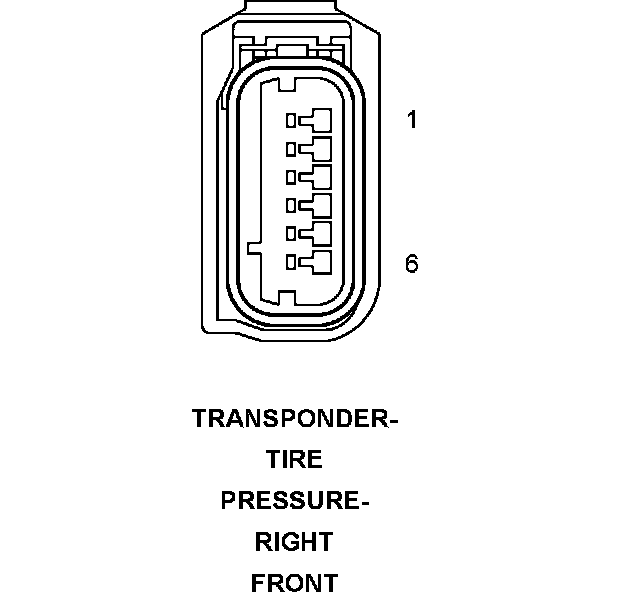

Component : TRANSPONDER-TIRE PRESSURE-RIGHT FRONT

Connector:
Name : TRANSPONDER-TIRE PRESSURE-RIGHT FRONT
Color :
# of pins : 6
Gender : FEMALE




Pin Circuit Description
1 F943 18PK/LG FUSED RUN/START RELAY OUTPUT
2 D508 20WT/GY COM-LIN TIRE PRESSURE MONITOR LAN
3 Z908 20BK/BR GROUND
4 -
5 Z908 20BK/BR GROUND
6 -

Component Location - 2




Component Location - 8
