Relay-Trailer Tow-Left

Component ID: 238

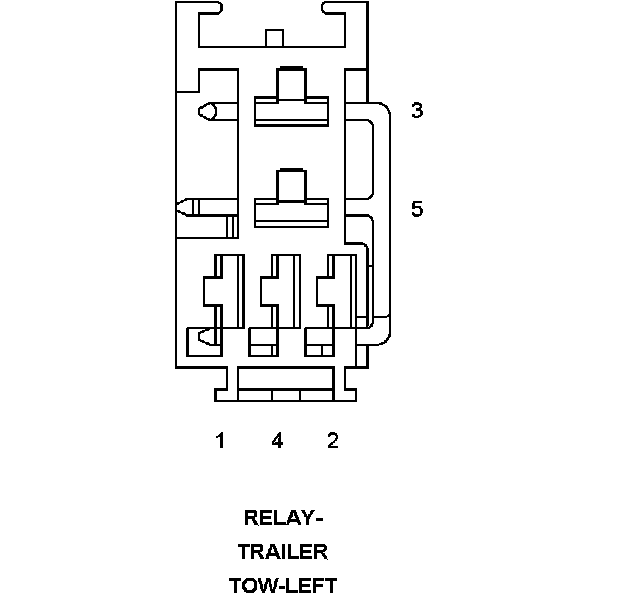

Component : RELAY-TRAILER TOW-LEFT

Connector:
Name : RELAY-TRAILER TOW-LEFT
Color :
# of pins : 5
Gender : FEMALE




Pin Circuit Description
1 A206A 18RD FUSED B(+)
2 L655 18WT/OR LEFT TRAILER TOW BRAKE LAMP RELAY CONTROL
3 L673 16YL LEFT REAR STOP/TURN SIGNAL FEED
4 - -
5 A206B 18RD FUSED B(+)

Component Location - 59
