Transfer Case Actuator

Component ID: 212
Component : MOTOR-TRANSFER CASE

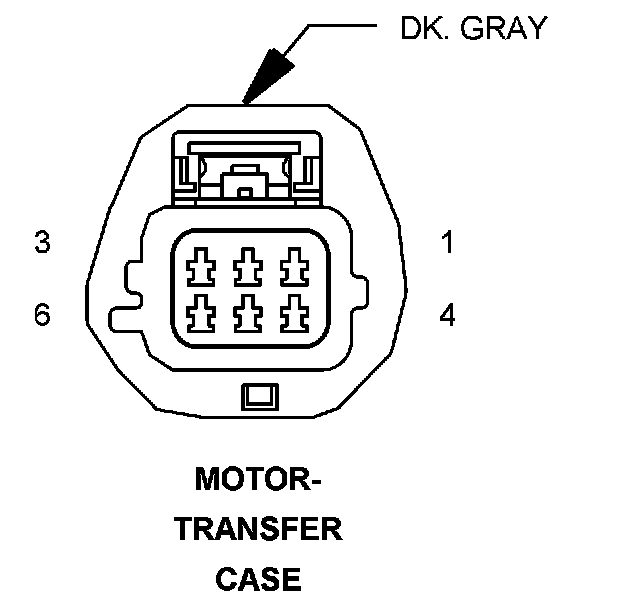

Connector:
Name : MOTOR-TRANSFER CASE
Color : DK. GRAY
# of pins : 6
Gender : FEMALE




Pin Circuit Description
1 T300 18YL/GY TRANSFER CASE BRAKE SIGNAL
2 - -
3 Z904 18BK/WT GROUND
3 Z904 18BK GROUND
4 T313 18YL/LB MODE SENSOR SIGNAL
4 T313 18YL/LG MODE SENSOR SIGNAL
5 F942 18PK/LG FUSED RUN/START RELAY OUTPUT
6 - -

Component Location - 25




Component Location - 22




Component Location - 21
