Sensor-Input Speed

Component ID: 371
Component : SENSOR-INPUT SPEED

Connector:
Name : SENSOR-INPUT SPEED
Color : BLACK
# of pins : 2
Qualifier : (RLE)




Pin Circuit Description
1 T13 18DG/VT SENSOR GROUND
2 T52 18DG/OR INPUT SPEED SIGNAL

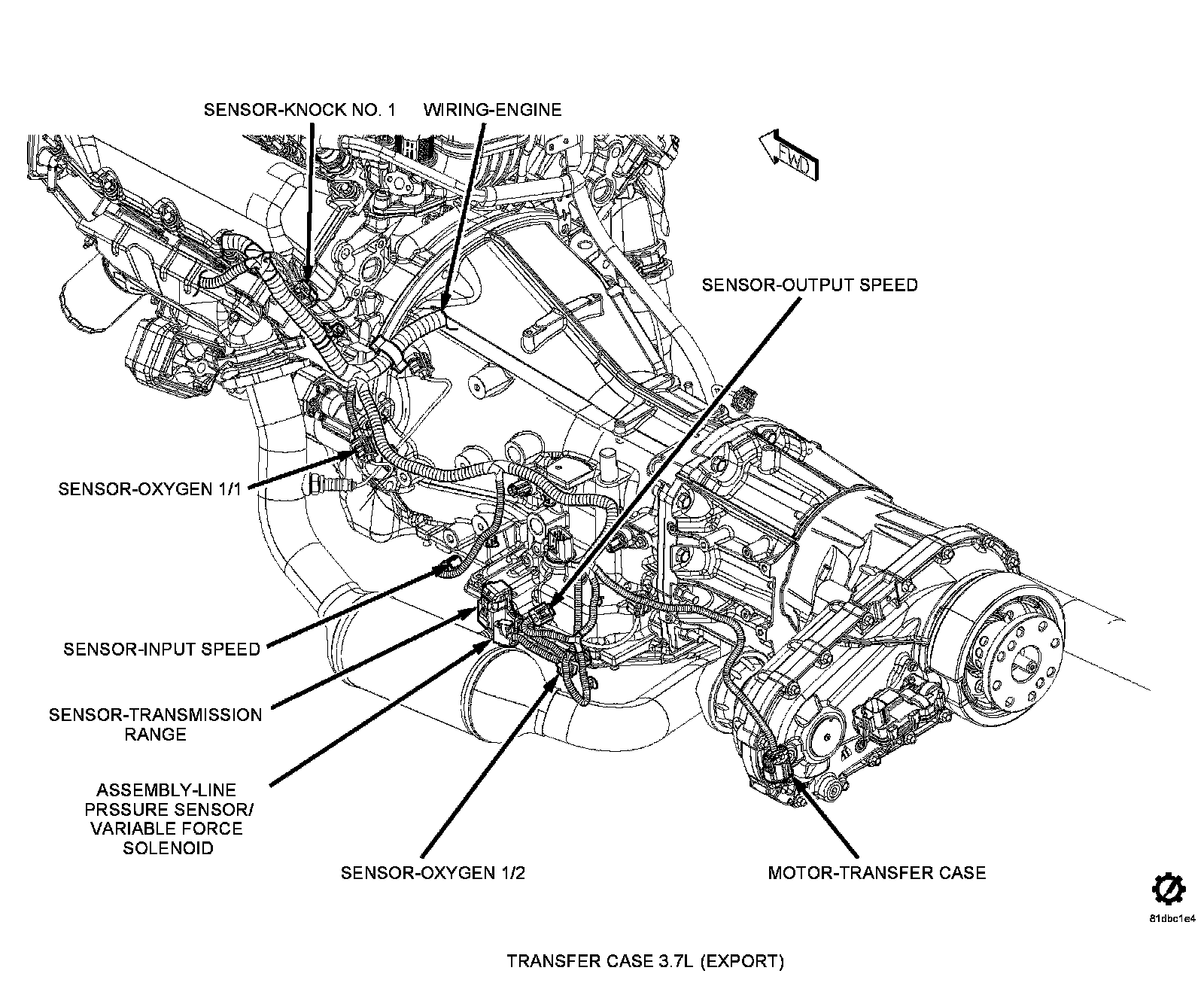

Component Location - 21
