Solenoid-Manifold Tuning Valve

Component ID: 413

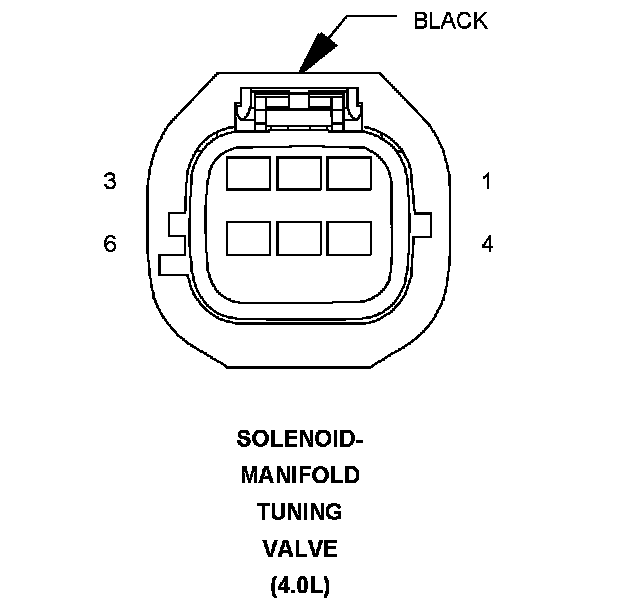

Component : SOLENOID-MANIFOLD TUNING VALVE

Connector:
Name : SOLENOID-MANIFOLD TUNING VALVE
Color : BLACK
# of pins : 6
Qualifier : (4.0L)
Gender : FEMALE




Pin Circuit Description
1 Z904 18BK GROUND
2 - -
3 K136 18BR MTV CONTROL
4 K900 18DB/DG SENSOR GROUND
5 K234 18DB/OR MTV SIGNAL
6 K857 18BR/LG 5 VOLT SUPPLY

Component Location - 18
