Solenoid-Short Runner Valve

Component ID: 414

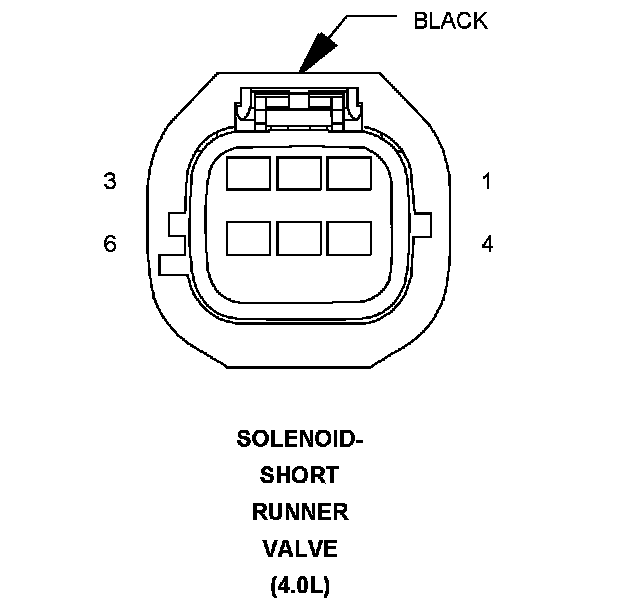

Component : SOLENOID-SHORT RUNNER VALVE

Connector:
Name : SOLENOID-SHORT RUNNER VALVE
Color : BLACK
# of pins : 6
Qualifier : (4.0L)




Pin Circuit Description
1 K236 20DB/LG SRV SOLENOID CONTROL
2 - -
3 F342 16BR/WT ASD RELAY OUTPUT
4 K900 18DB/DG SENSOR GROUND
5 K235 18DB/YL SRV SIGNAL
6 K857 18BR/LG 5 VOLT SUPPLY

Component Location - 17
