Sensor-Wheel Speed-ABS-Right Front

Component ID: 406
Component : SENSOR-WHEEL SPEED-ABS-RIGHT FRONT

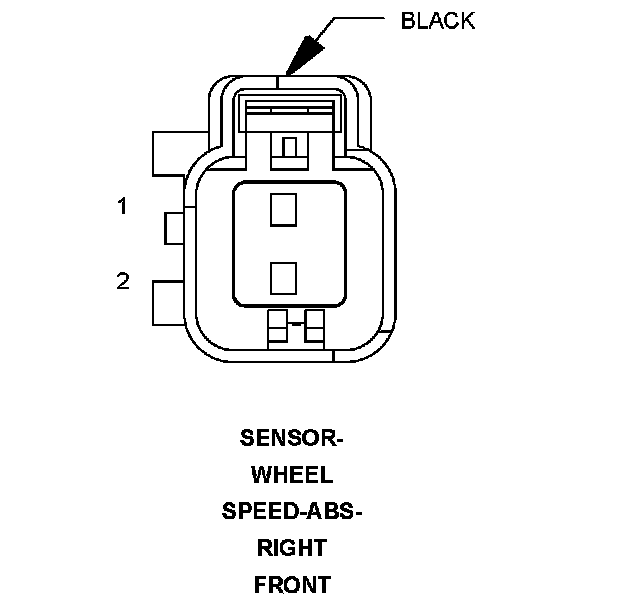

Connector:
Name : SENSOR-WHEEL SPEED-ABS-RIGHT FRONT
Color : BLACK
# of pins : 2




Pin Circuit Description
1 B7 18DG/VT RIGHT FRONT WHEEL SPEED SENSOR SUPPLY
2 B6 18DG/WT RIGHT FRONT WHEEL SPEED SENSOR SIGNAL

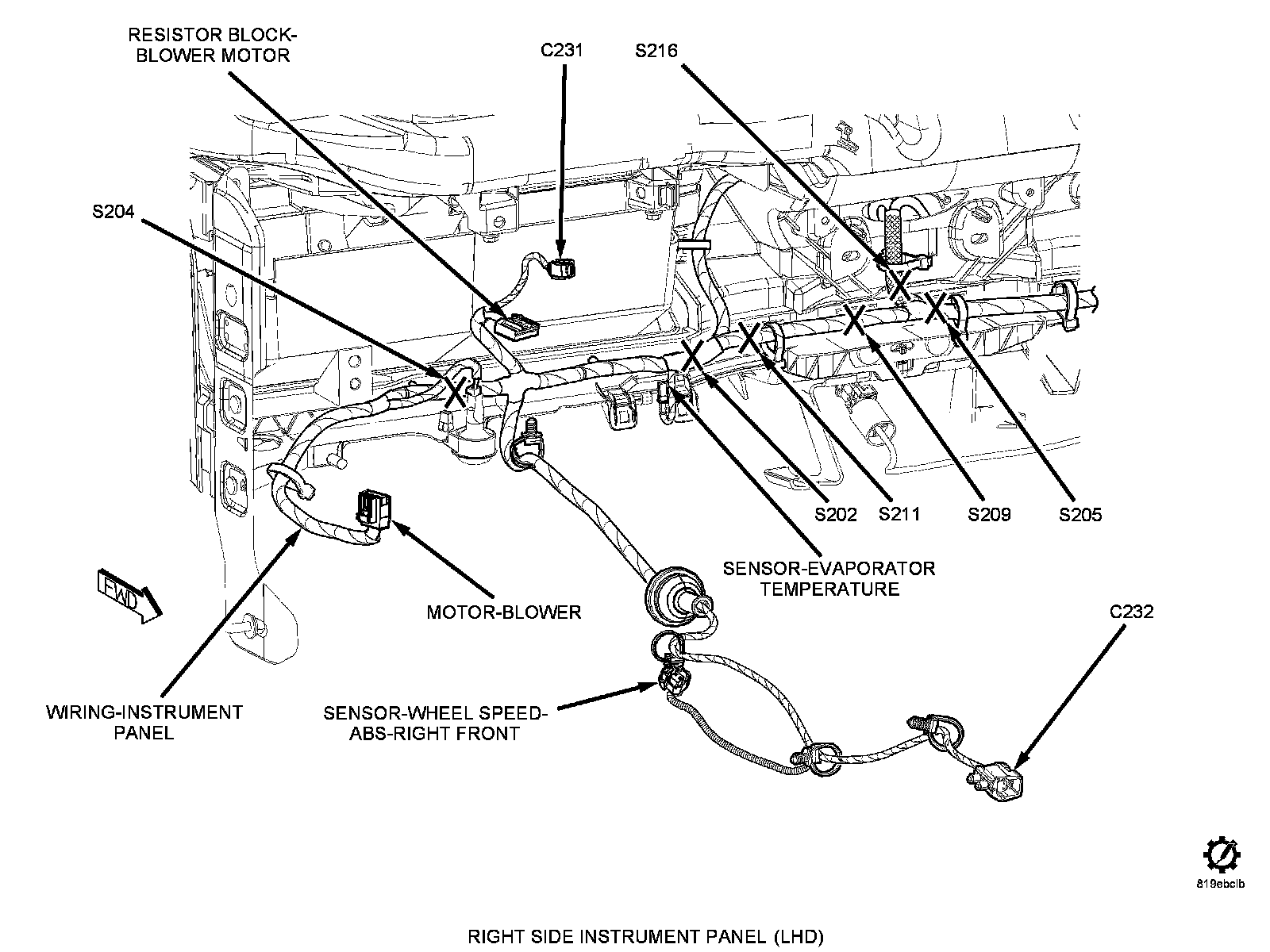

Component Location - 33




Component Location - 40




Component Location - 45
