Motor-Wiper-Rear

Component ID: 219
Component : MOTOR-WIPER-REAR

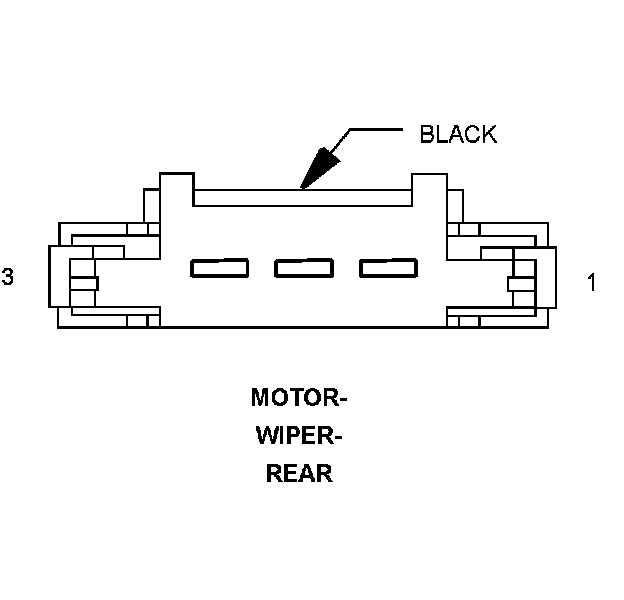

Connector:
Name : MOTOR-WIPER-REAR
Color : BLACK
# of pins : 3




Pin Circuit Description
1 W13 16BR/LG REAR WIPER MOTOR CONTROL
2 W17 20BR/DB REAR WIPER PARK SWITCH SENSE
3 Z920 16BK/LG GROUND

Component Location - 67
