Group 8W-31 (Transmission Control System)

8w-31-02:

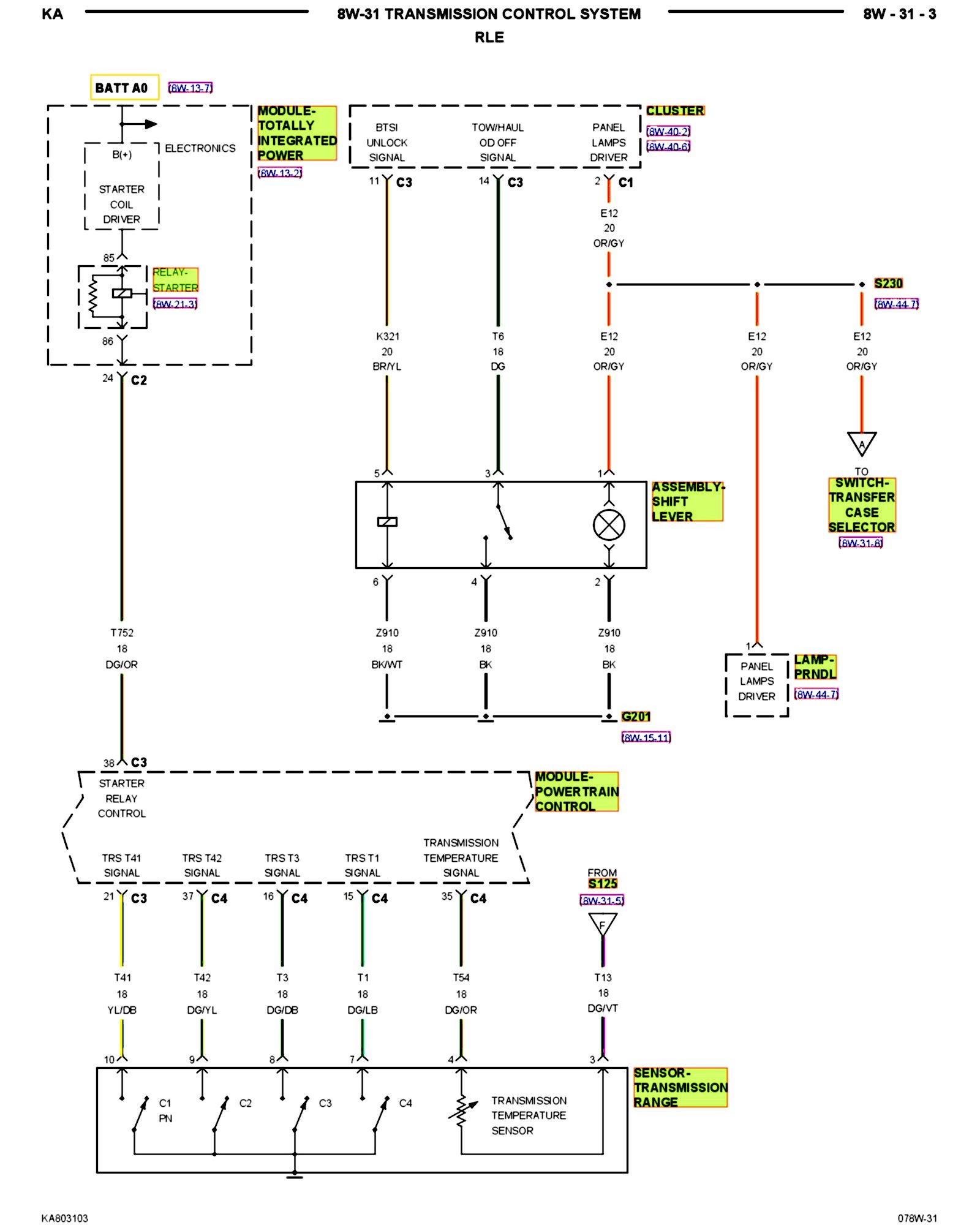

8w-31-03 (RLE):

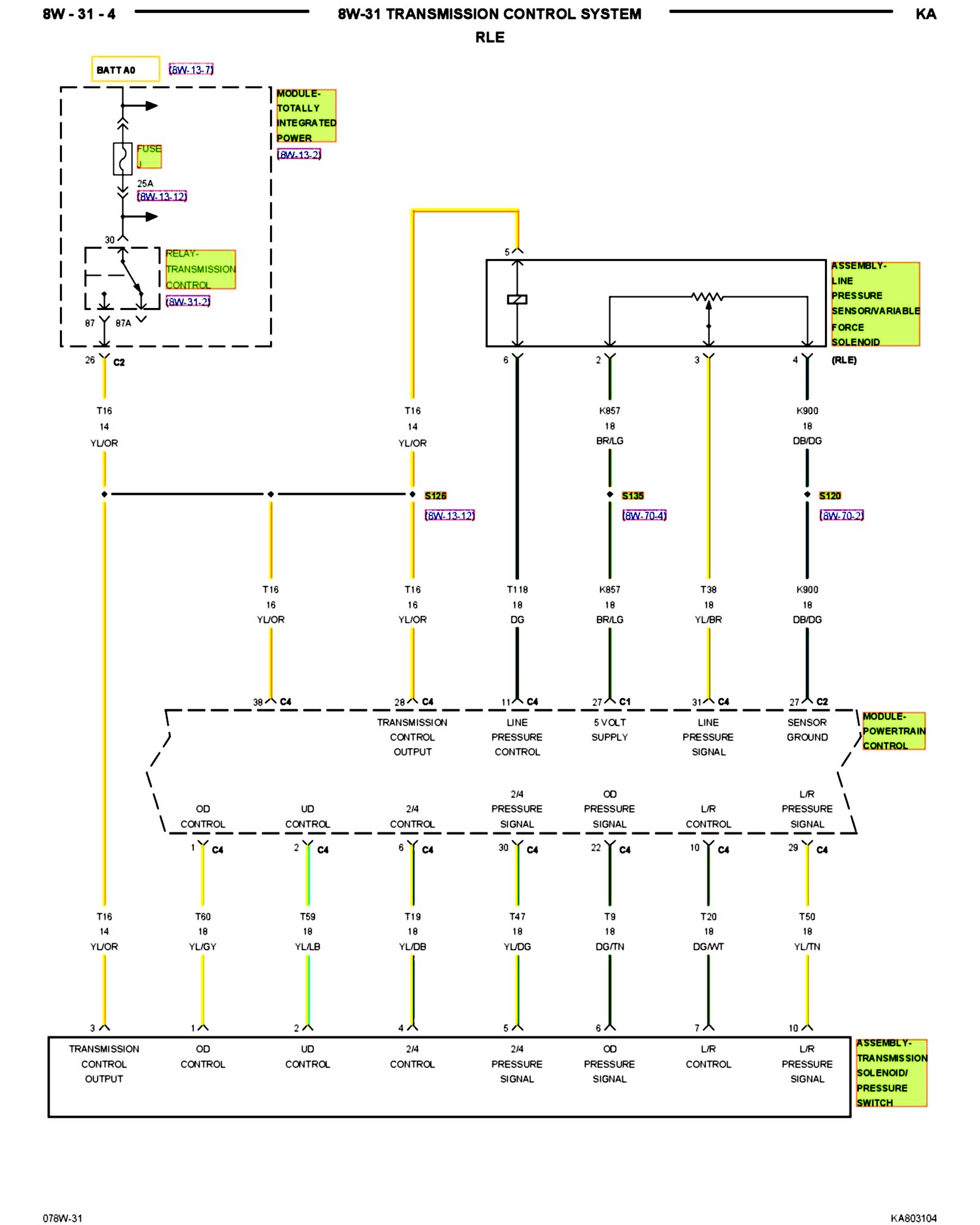

8w-31-04 (RLE):



8w-31-05 (RLE):

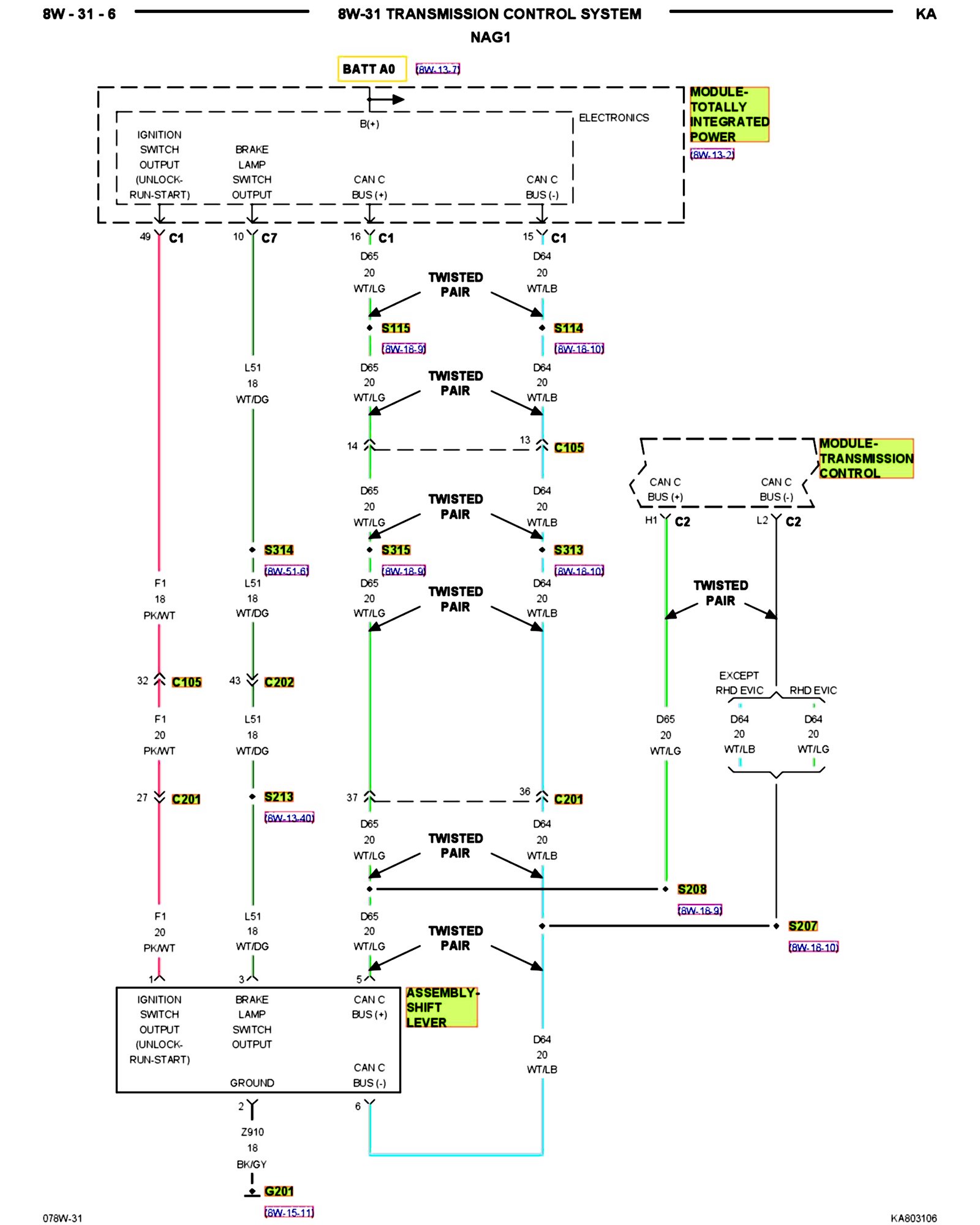

8w-31-06 (NAG1):



8w-31-07 (NAG1):

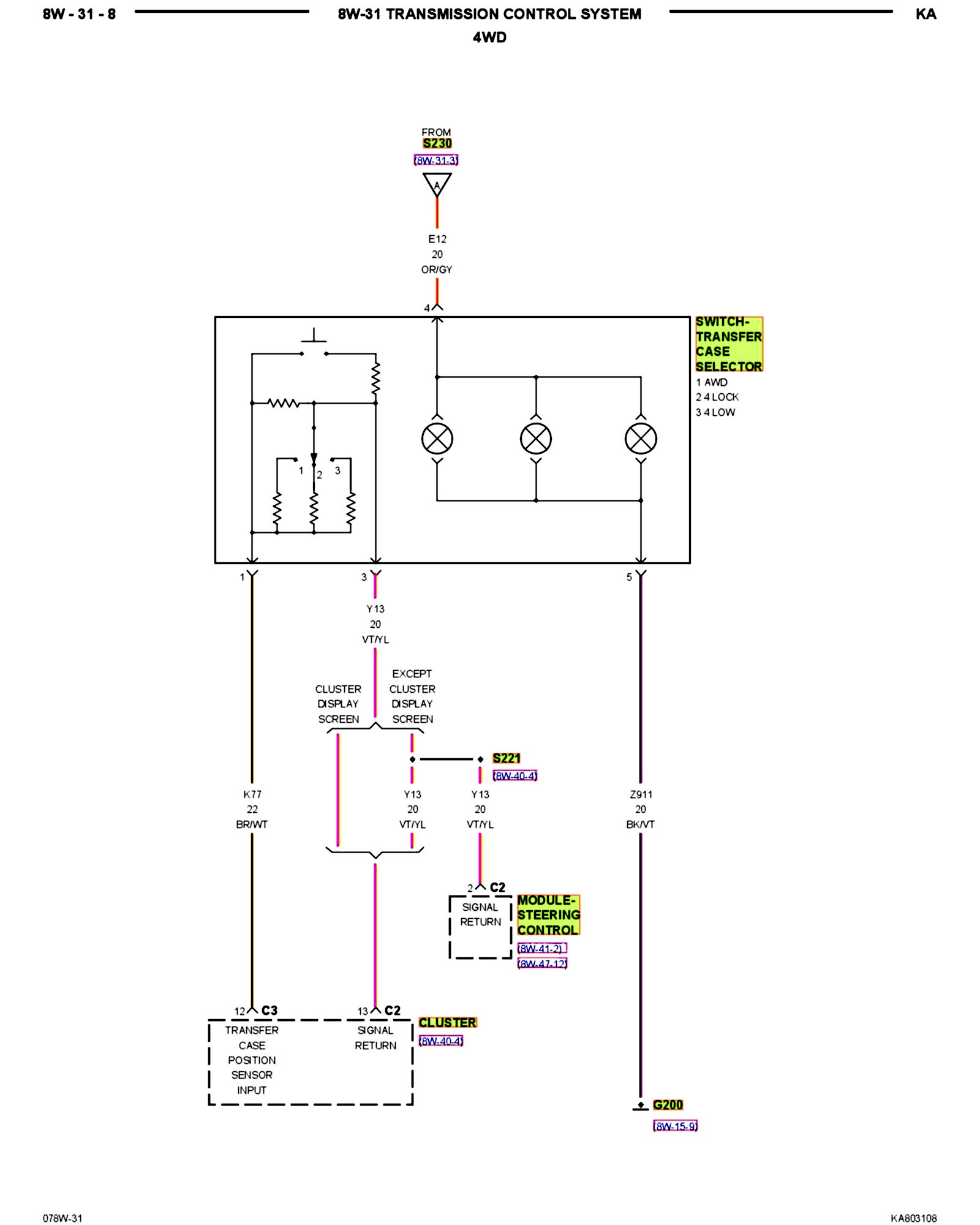

8w-31-08 (4WD):



8w-31-09 (4WD):
