Blower Motor Resistor: Diagrams

Component ID: 241

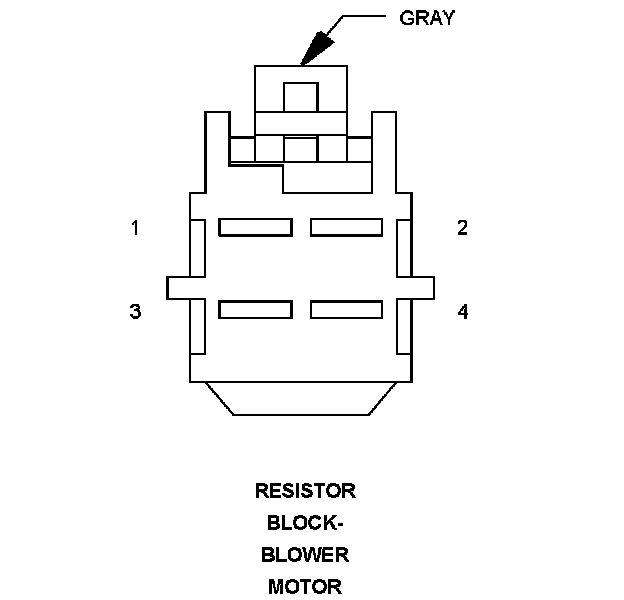

Component : RESISTOR BLOCK-BLOWER MOTOR

Connector:
Name : RESISTOR BLOCK-BLOWER MOTOR
Color : GRAY
# of pins : 4




Pin Circuit Description
1 C73 14DB/VT FRONT BLOWER M2 SPEED
2 C72 16DB/OR FRONT BLOWER M1 SPEED
3 C75 10DB/GY BLOWER MOTOR HIGH DRIVER
4 C71 16DB/BR FRONT BLOWER LOW SPEED

Component Location - 40




Component Location - 46
