Blower Motor: Locations

Component ID: 206
Component : MOTOR-BLOWER

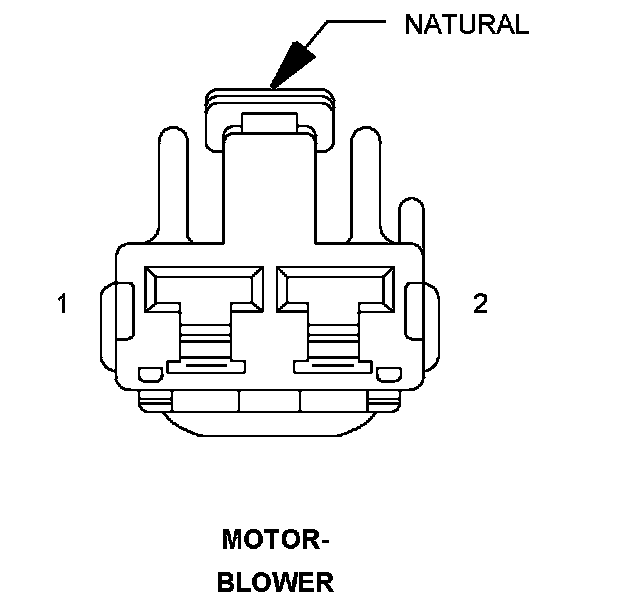

Connector:
Name : MOTOR-BLOWER
Color : NATURAL
# of pins : 2
Gender : FEMALE




Pin Circuit Description
1 C75 12DB/GY BLOWER MOTOR HIGH DRIVER
2 C7 10DB BLOWER MOTOR SUPPLY
2 C806 10DB/BR BLOWER MOTOR CONTROL OUTPUT

Component Location - 40




Component Location - 46
