Lamp-Footwell-Front Right




Component ID: 156

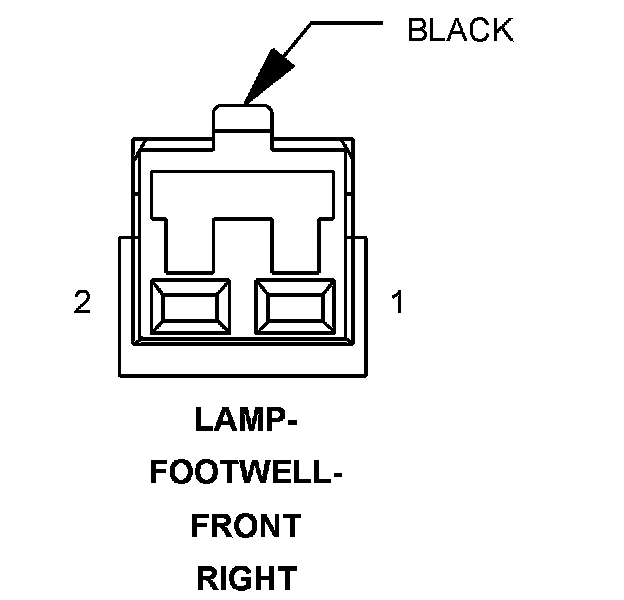

Component : LAMP-FOOTWELL-FRONT RIGHT

Connector:
Name : LAMP-FOOTWELL-FRONT RIGHT
Color : BLACK
# of pins : 2




Pin Circuit Description
1 M24 20YL/WT COURTESY LAMPS DRIVER
2 Z911 18BK/PK GROUND

Component Location - 45
