Fog Lamp - Installation

LAMP





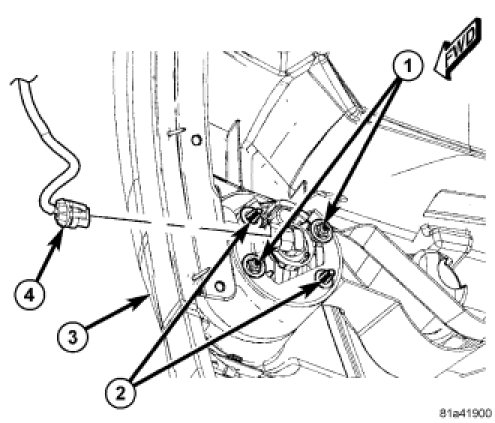

1. Position the front fog lamp to the receptacle from the front of the front bumper fascia (3). Be certain that the two alignment pins (2) on the back of the lamp housing are engaged in the alignment holes in the fascia receptacle.
2. Reach up between the lower edge of the front fascia and the front of the front wheel house splash shield to install and tighten the two screws (1) that secure the lamp to the back of the fascia. Tighten the screws to 2 Nm (18 in. lbs.).
3. Reconnect the front end module wire harness connector (4) to the front fog lamp bulb connector receptacle.
4. Reconnect the battery negative cable.
5. Confirm proper front fog lamp alignment. Front Lamp Aiming.
