Lamp-Headlamp-Left

Component ID: 157
Component : LAMP-HEADLAMP-LEFT

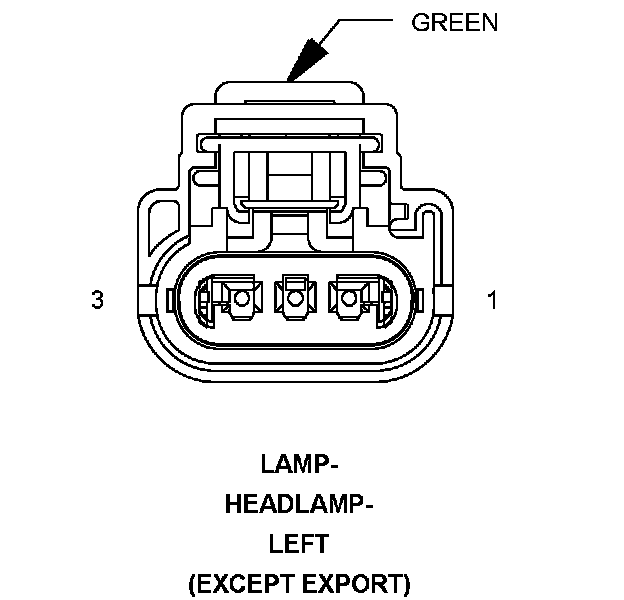

Connector:
Name : LAMP-HEADLAMP-LEFT
Color : GREEN
# of pins : 3
Qualifier : (EXCEPT EXPORT)
Gender : FEMALE




Pin Circuit Description
1 L43 16WT/DB LEFT LOW BEAM DRIVER
2 L911 18BK/LG LEFT HEADLAMP RETURN SIGNAL
3 L33 16WT/LG LEFT HIGH BEAM DRIVER

Component Location - 4




Component Location - 5






Connector:
Name : LAMP-HEADLAMP-LEFT
Color :
# of pins : 3
Qualifier : (EXPORT)




Pin Circuit Description
1 L33 16WT/LG LEFT HIGH BEAM DRIVER
2 L43 16WT/DB LEFT LOW BEAM DRIVER
3 L911 18BK/LG LEFT HEADLAMP RETURN SIGNAL

Component Location - 4




Component Location - 5
