Horn 2

Component ID: 144
Component : HORN 2

Connector:

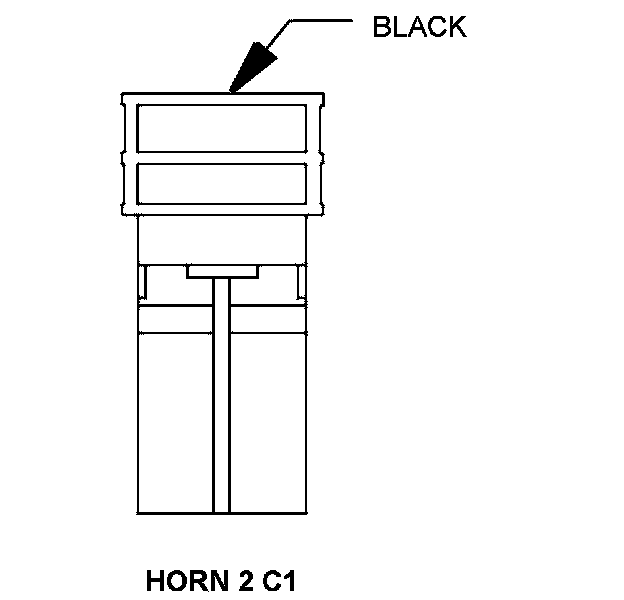

Name : HORN 2 C1
Color : BLACK
# of pins : 1




Pin Circuit Description
1 X22 18GY/LB FUSED HORN CONTROL OUTPUT

Component Location - 4




Component Location - 5






Connector:

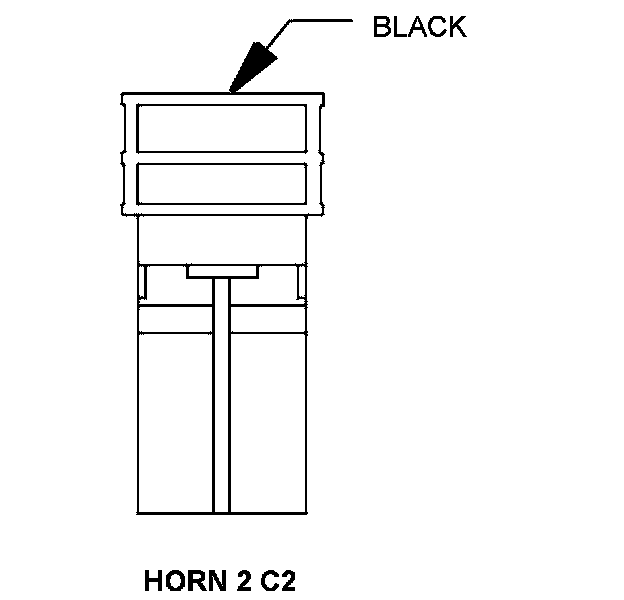

Name : HORN 2 C2
Color : BLACK
# of pins : 1




Pin Circuit Description
1 Z908 18BK/PK GROUND

Component Location - 4




Component Location - 5
