License Plate Lamp: Locations

Component ID: 159
Component : LAMP-LICENSE

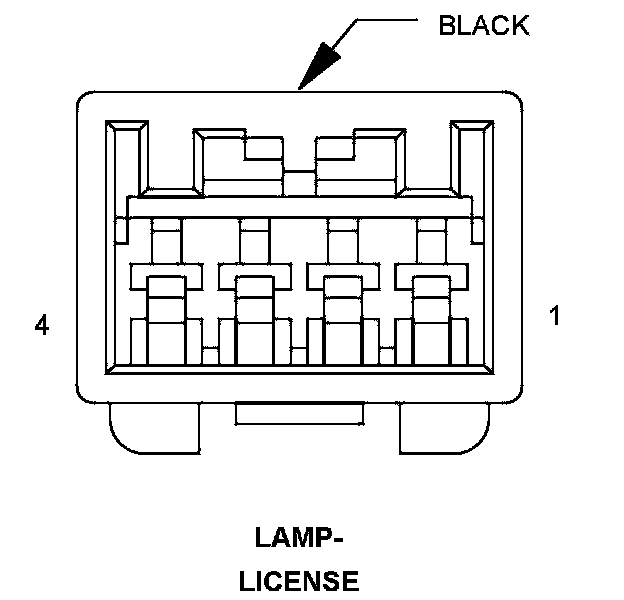

Connector:
Name : LAMP-LICENSE
Color : BLACK
# of pins : 4




Pin Circuit Description
1 L17 18WT/LG LEFT REAR PARK LAMP CONTROL OUTPUT
2 Z920 18BK/GY GROUND
3 - -
4 - -

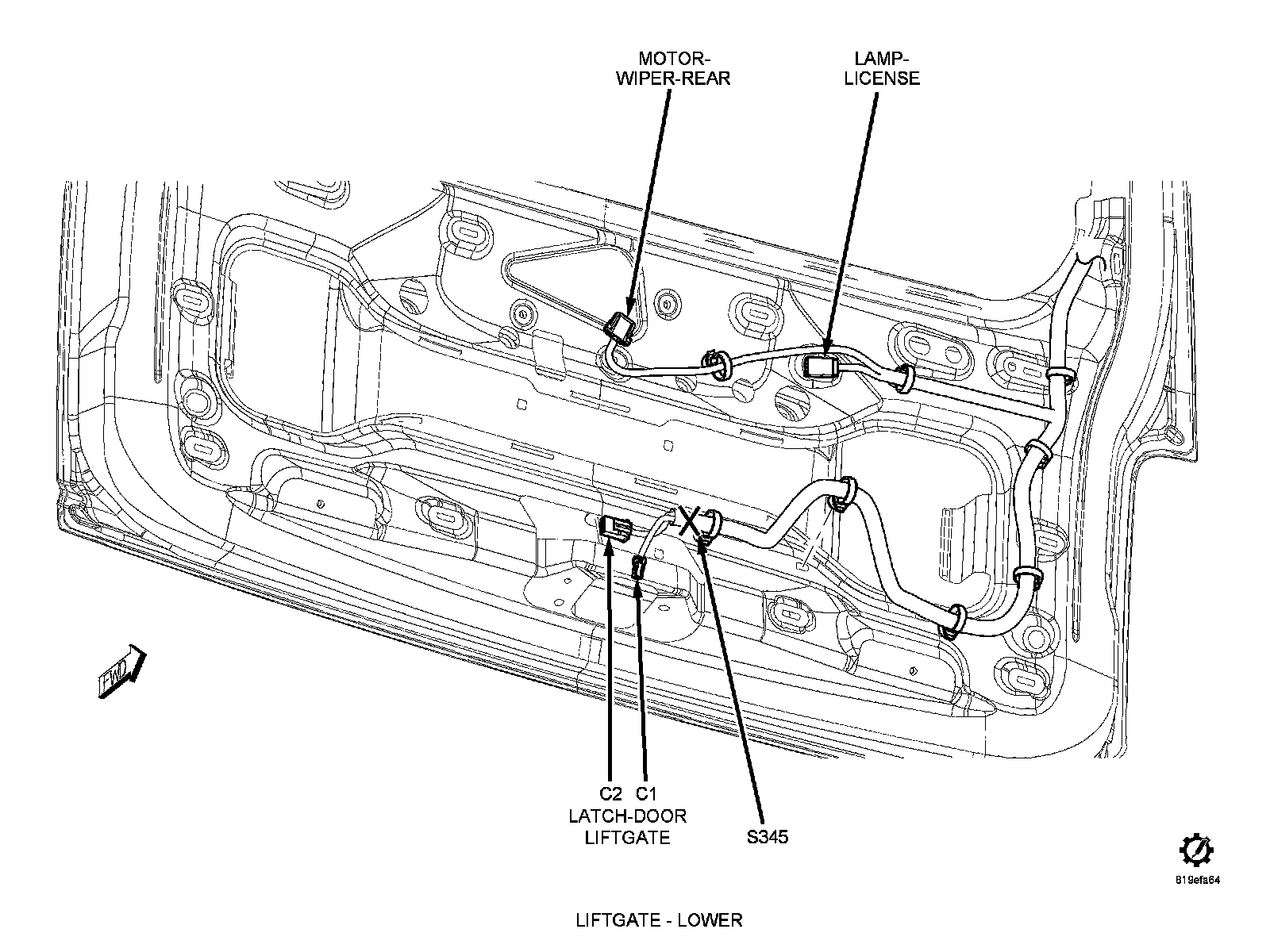

Component Location - 67
