Lamp-Map-Mirror Mounted

Component ID: 160

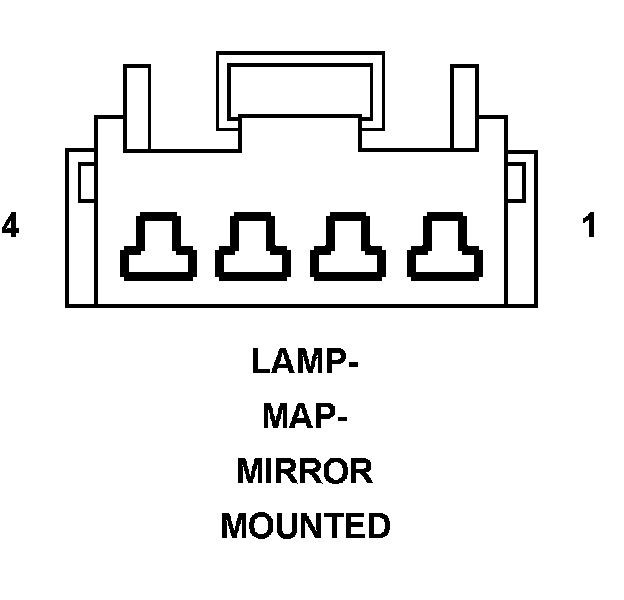

Component : LAMP-MAP-MIRROR MOUNTED

Connector:
Name : LAMP-MAP-MIRROR MOUNTED
Color :
# of pins : 4




Pin Circuit Description
1 - -
2 M24 20YL/WT COURTESY LAMPS DRIVER
3 M27 20YL/LB READING/RAIL LAMPS DRIVER
4 Z919 20BK/DB GROUND
