Auxiliary Power Outlet: Locations

Component ID: 221
Component : POWER OUTLET-AC

Connector:

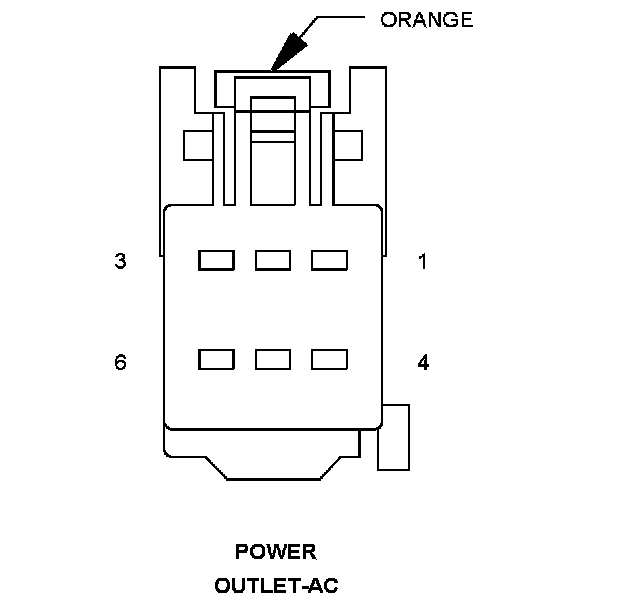

Name : POWER OUTLET-AC
Color : ORANGE
# of pins : 6
Gender : FEMALE




Pin Circuit Description
1 P801 18LG 110 VOLT AC LINE 1
2 - -
3 - -
4 P802 18LG/OR 110 VOLT AC LINE 2
5 - -
6 - -

Component Location - 50




Component Location - 53
