Circuit Breaker: Locations

Component ID: 56

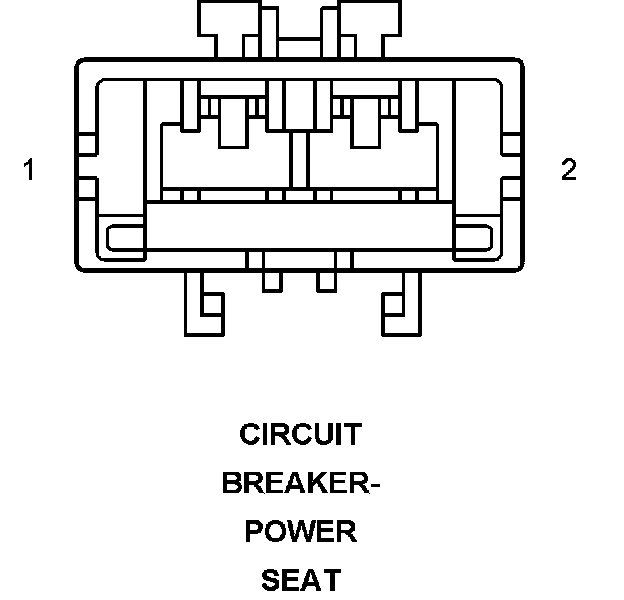

Component : CIRCUIT BREAKER-POWER SEAT

Connector:
Name : CIRCUIT BREAKER-POWER SEAT
Color :
# of pins : 2
Gender : MALE




Pin Circuit Description
1 A907 12RD FUSED B(+)
2 A210 14OR/RD FUSED B(+)

Component Location - 54
