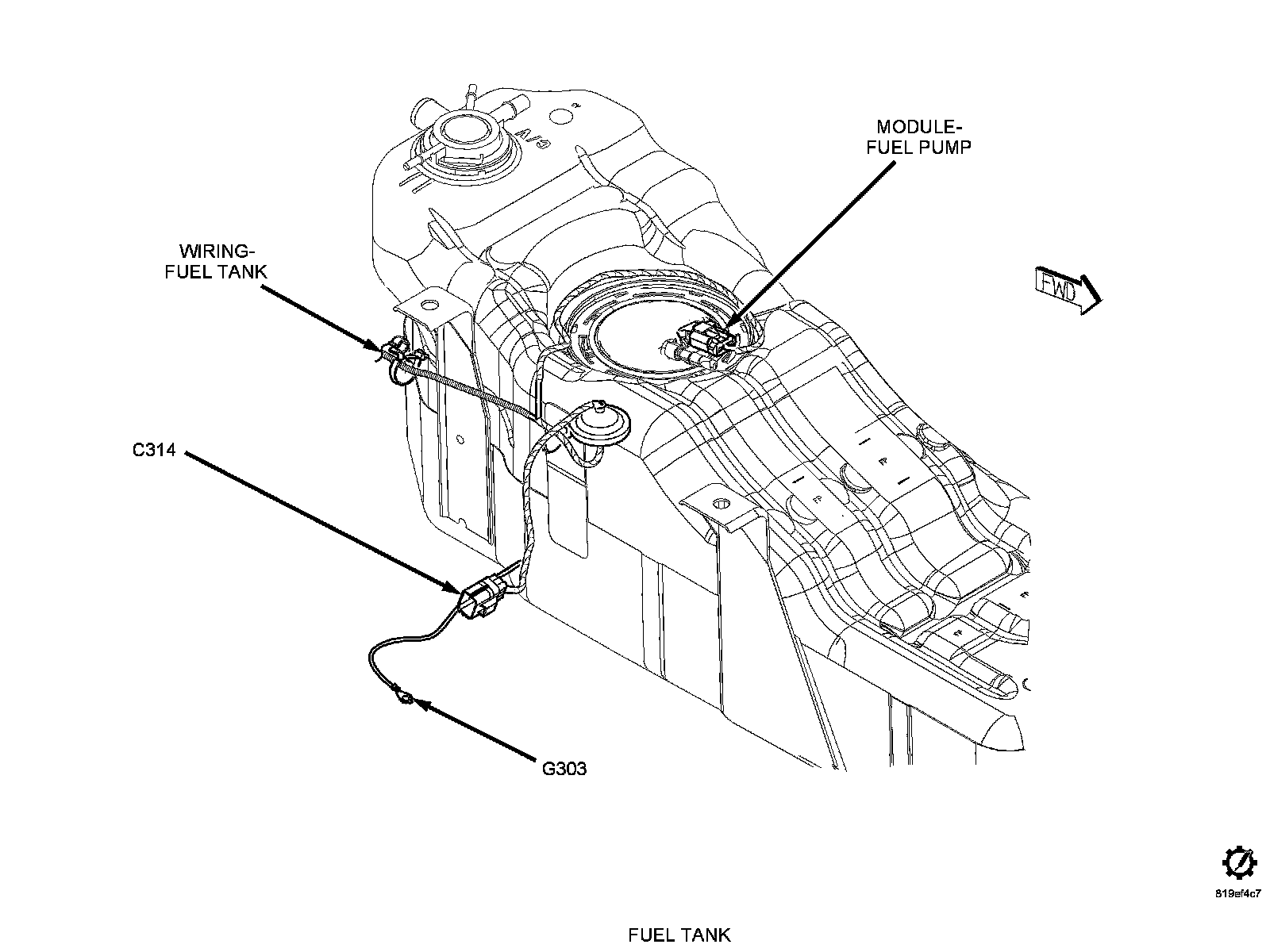

Fuel Pump: Locations

Component ID: 187
Component : MODULE-FUEL PUMP

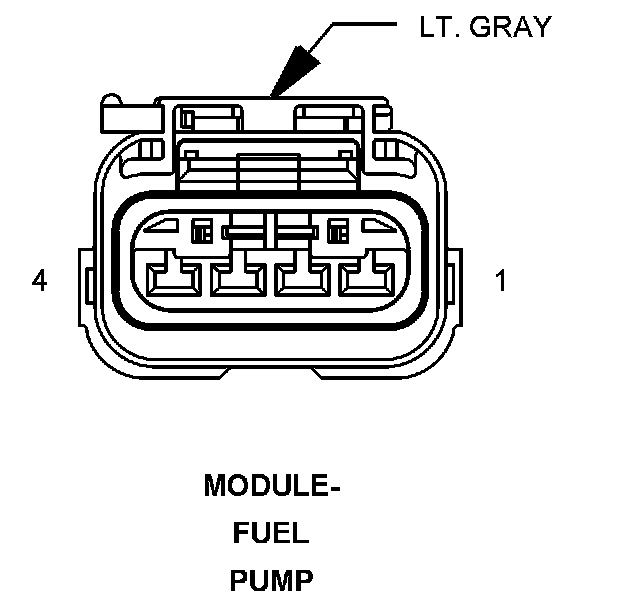

Connector:
Name : MODULE-FUEL PUMP
Color : LT. GRAY
# of pins : 4




Pin Circuit Description
1 Z918 16BK GROUND
2 K91 18DB/YL SENSOR GROUND
3 N4 18DB/WT FUEL LEVEL SIGNAL
4 N1 16DB/OR FUSED FUEL PUMP OUTPUT

Component Location - 58
