Air Bag Control Module: Locations
Component ID: 197
Component : MODULE-OCCUPANT RESTRAINT CONTROLLER
Connector:
Name : MODULE-OCCUPANT RESTRAINT CONTROLLER C1 (ORC)
Color : YELLOW
# of pins : 32
Gender : FEMALE
Pin Circuit Description
1 - -
2 - -
3 - -
4 - -
5 - -
6 - -
7 - -
8 -
9 R43 20LG/BR DRIVER SQUIB 1 LINE 2
10 R45 20LG/OR DRIVER SQUIB 1 LINE 1
11 R44 20LB/OR PASSENGER SQUIB 1 LINE 1
12 R42 20LB/BR PASSENGER SQUIB 1 LINE 2
13 R61 20LG/VT DRIVER SQUIB 2 LINE 2
14 R63 20LG/WT DRIVER SQUIB 2 LINE 1
15 R64 20LB/WT PASSENGER SQUIB 2 LINE 1
16 R62 20LB/VT PASSENGER SQUIB 2 LINE 2
17 - -
18 - -
19 - -
20 - -
21 - -
22 - -
23 D65 20WT/LG CAN C BUS (+)
24 D64 20WT/LB CAN C BUS (-)
25 - -
26 - -
27 - -
28 R81 20LB/WT LEFT FRONT IMPACT SENSOR GROUND
29 R79 20LB/VT LEFT FRONT IMPACT SENSOR SIGNAL
30 R82 20WT/LB RIGHT FRONT IMPACT SENSOR GROUND
31 R80 20VT/LB RIGHT FRONT IMPACT SENSOR SIGNAL
32 Z912 18BK GROUND

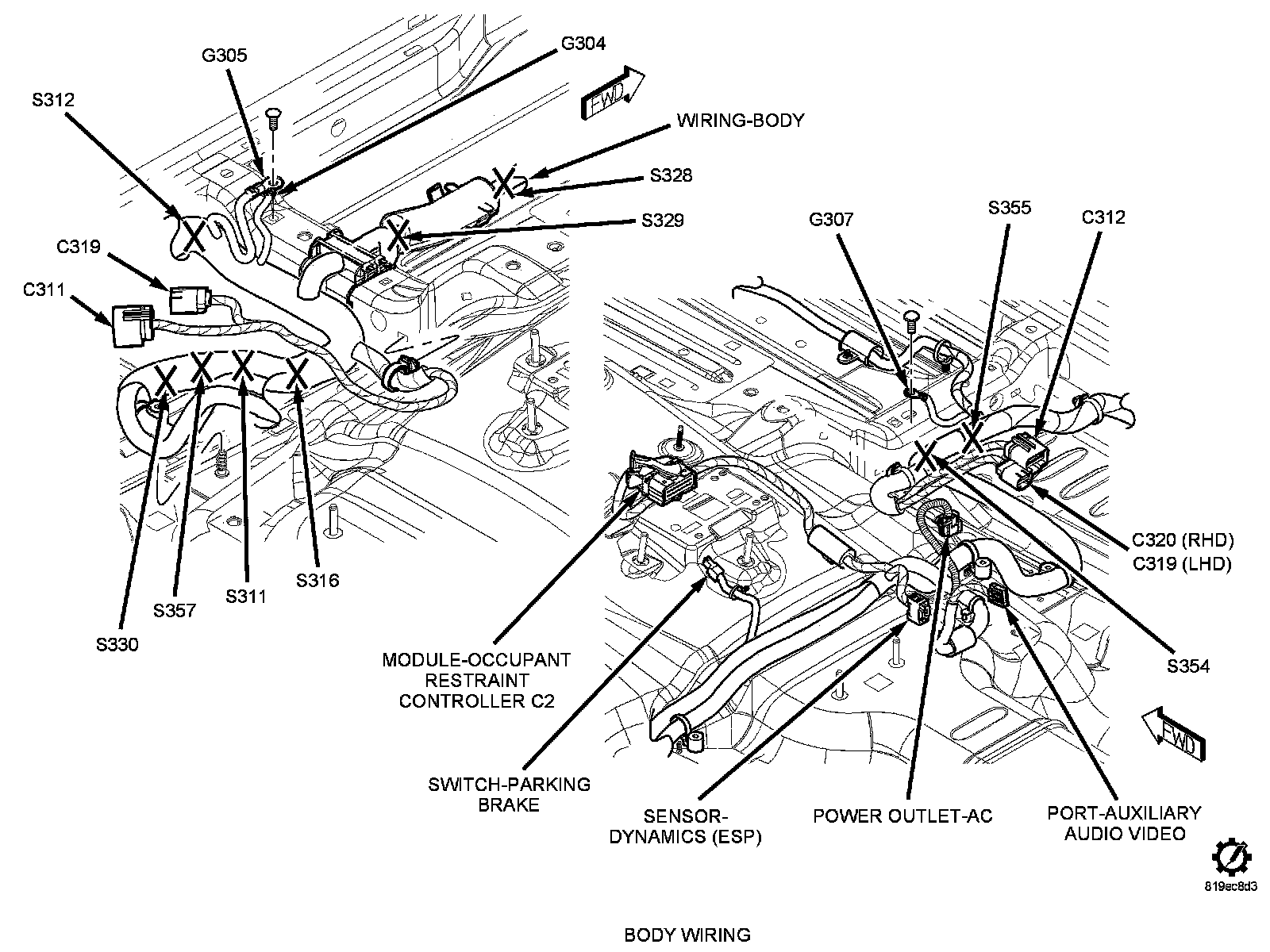

Component Location - 50
Connector:
Name : MODULE-OCCUPANT RESTRAINT CONTROLLER C2 (ORC)
Color : YELLOW
# of pins : 32
Pin Circuit Description
1 - -
2 - -
3 - -
4 - -
5 R504 20LB/YL PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 2
6 R506 20LB/DG PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 1
7 R505 20LG/DG DRIVER SEAT BELT RETRACTOR TENSIONER LINE 1
8 R503 20LG/YL DRIVER SEAT BELT RETRACTOR TENSIONER LINE 2
9 R54 20LB/YL PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 2
10 R56 20LB/DG PASSENGER SEAT BELT RETRACTOR TENSIONER LINE 1
11 R55 20LG/DG DRIVER SEAT BELT RETRACTOR TENSIONER LINE 1
12 R53 20LG/YL DRIVER SEAT BELT RETRACTOR TENSIONER LINE 2
13 R1 20LB/WT LEFT CURTAIN SQUIB 1 LINE 2
14 R3 20LB/OR LEFT CURTAIN SQUIB 1 LINE 1
15 R4 20OR/LB RIGHT CURTAIN SQUIB 1 LINE 1
16 R2 20WT/LB RIGHT CURTAIN SQUIB 1 LINE 2
17 R262 20WT/LB PASSENGER SEAT TRACK POSITION SENSOR SIGNAL
18 R264 20VT/LB PASSENGER SEAT TRACK POSITION SENSOR SUPPLY
19 R13 20LG/TN LEFT SIDE IMPACT SENSOR 1 SIGNAL
20 R15 20LG/BR LEFT SIDE IMPACT SENSOR 1 GROUND
21 R16 20BR/LG RIGHT SIDE IMPACT SENSOR 1 GROUND
22 R14 20TN/LG RIGHT SIDE IMPACT SENSOR 1 SIGNAL
23 R263 20LB/VT DRIVER SEAT TRACK POSITION SENSOR SUPPLY
24 R261 20LB/WT DRIVER SEAT TRACK POSITION SENSOR SIGNAL
25 R58 20LB/GY PASSENGER SEAT BELT SWITCH SIGNAL
26 - -
27 - -
28 R60 20LB/TN PASSENGER SEAT BELT SWITCH GROUND
29 Z915 18BK GROUND
30 - -
31 F100 20PK/VT FUSED RUN RELAY OUTPUT
32 F201 20PK/OR FUSED RUN/START RELAY OUTPUT
Component Location - 50
