Solar Sensor: Diagrams

Component ID: 369
Component : SENSOR-INFRARED

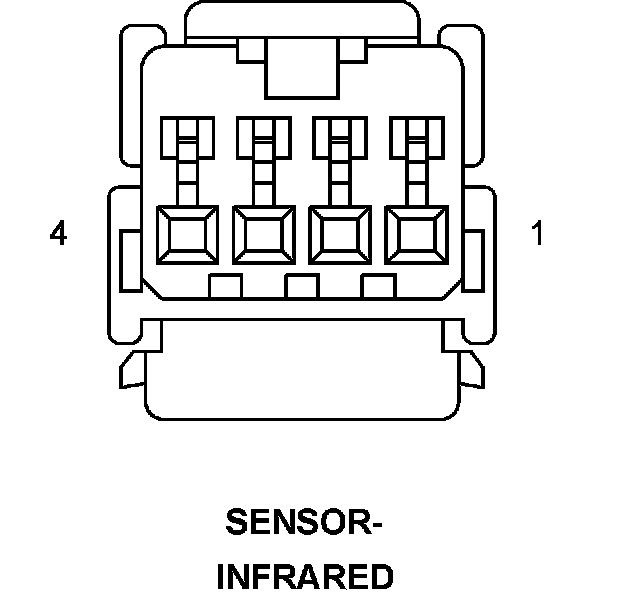

Connector:
Name : SENSOR-INFRARED
Color :
# of pins : 4




Pin Circuit Description
1 F921B 20PK/YL FUSED RUN RELAY OUTPUT
2 - -
3 C83 22DB/LG INFRARED SENSOR SIGNAL
4 C830 22DB/YL IR SENSOR RETURN
