Brake Light Switch: Locations

Component ID: 442
Component : SWITCH-STOPLAMP

Connector:
Name : SWITCH-STOPLAMP
Color : BLACK
# of pins : 6




Pin Circuit Description
1 A108 18LG/RD FUSED B(+)
2 L51 18WT/TN BRAKE LAMP SWITCH OUTPUT
2 L51 18WT/DG BRAKE LAMP SWITCH OUTPUT
3 F941 18PK/LG FUSED RUN/START RELAY OUTPUT
4 B16 20LB/DG BRAKE SIGNAL 2
5 Z910 18BK/DB GROUND
6 B15 20DG/WT BRAKE SIGNAL 1

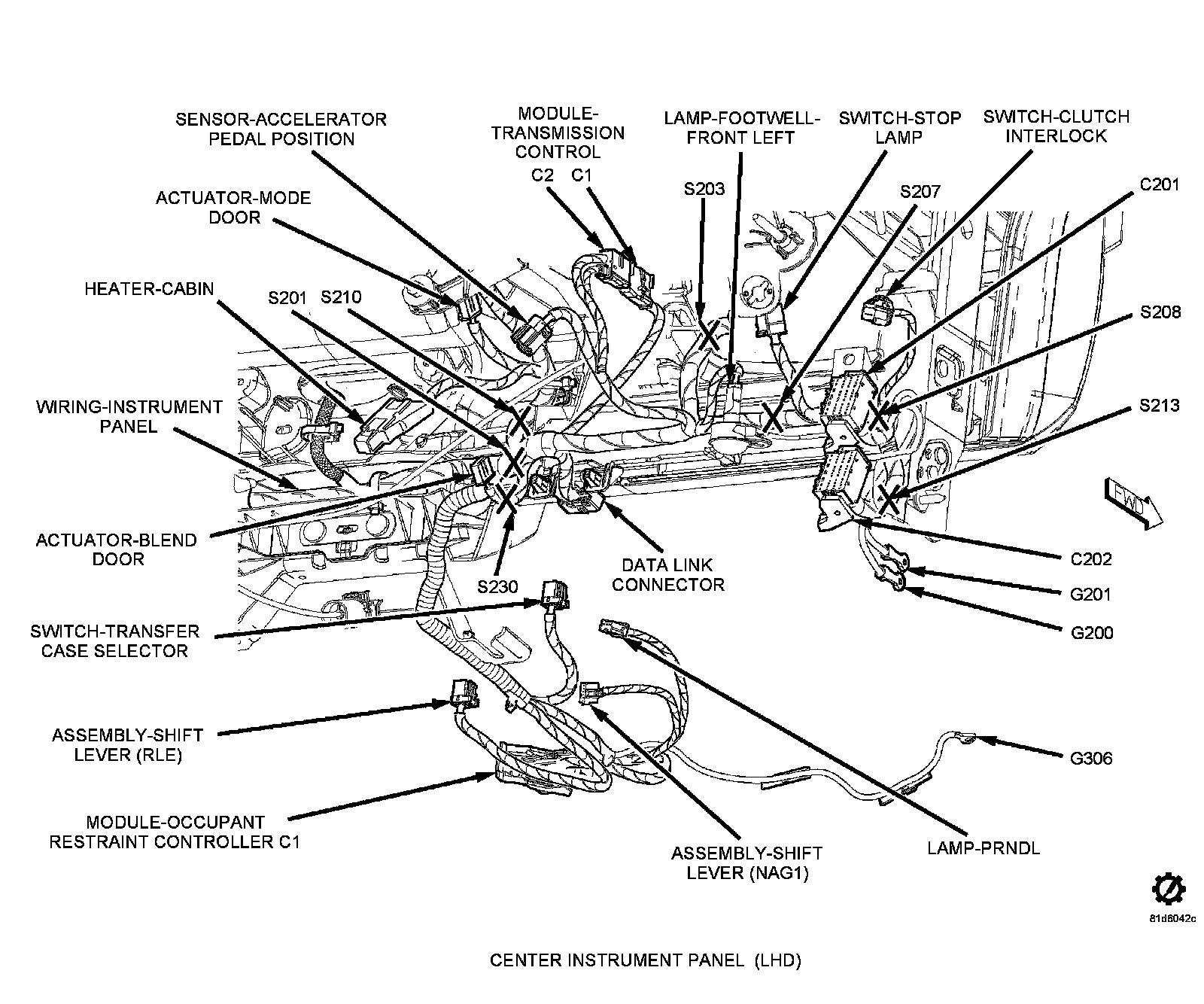

Component Location - 45




Component Location - 41
