Battery: Diagrams

Component ID: 24
Component : BATTERY

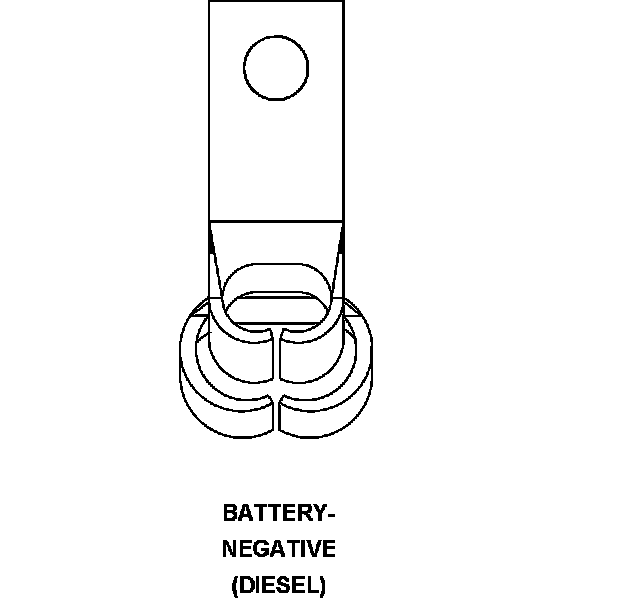

Connector:
Name : BATTERY-NEGATIVE
Color :
# of pins : 1
Qualifier : (DIESEL)




Pin Circuit Description
1 Z901 6BK GROUND
Pin Circuit Description
1 Z902 2BK GROUND

Component Location - 9




Component Location - 10




Component Location - 12

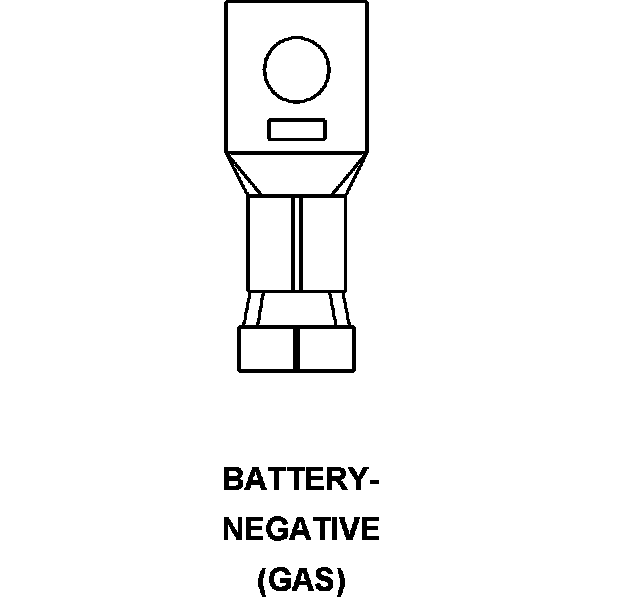

Connector:
Name : BATTERY-NEGATIVE
Color :
# of pins : 1
Qualifier : (GAS)




Pin Circuit Description
1 Z901 6BK GROUND
Pin Circuit Description
1 Z902 4BK GROUND

Component Location - 9




Component Location - 10




Component Location - 12

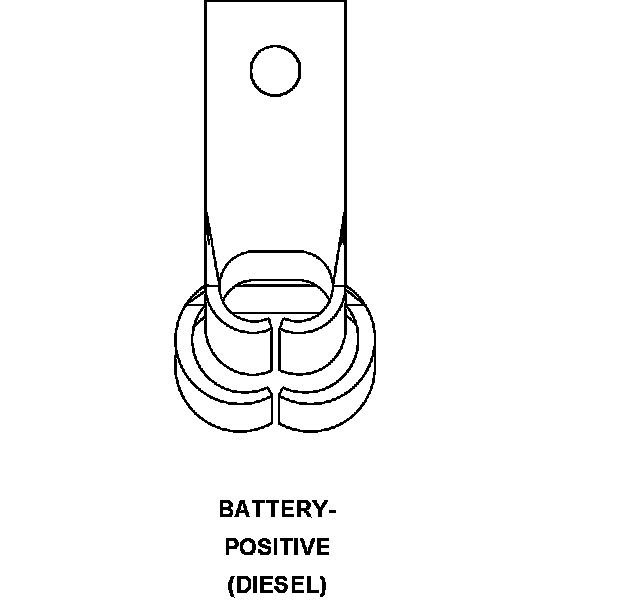

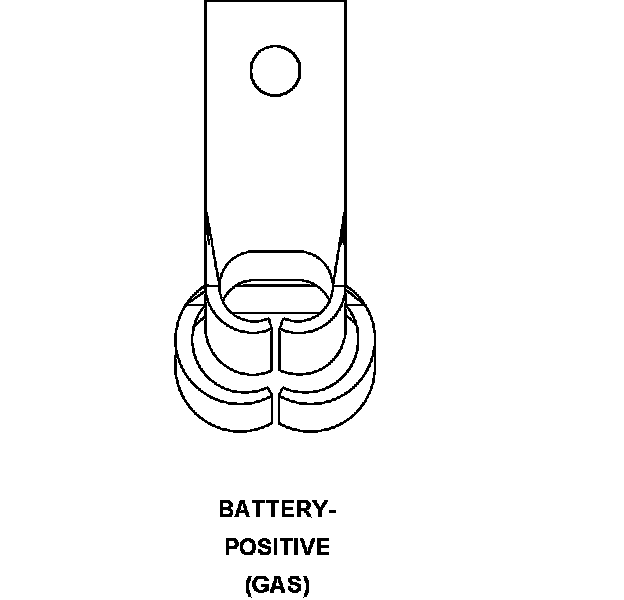

Connector:
Name : BATTERY-POSITIVE
Color :
# of pins : 1
Qualifier : (DIESEL)




Pin Circuit Description
1 A0 2RD B(+)
Pin Circuit Description
1 A0 6RD B(+)
Pin Circuit Description
1 A2 16DB B(+)

Component Location - 9




Component Location - 10




Component Location - 12






Connector:
Name : BATTERY-POSITIVE
Color :
# of pins : 1
Qualifier : (DIESEL)




Pin Circuit Description
1 A940 6RD B(+)

Component Location - 9




Component Location - 10




Component Location - 12






Connector:
Name : BATTERY-POSITIVE
Color :
# of pins : 2
Qualifier : (GAS)




Pin Circuit Description
1 A0 6RD B(+)
Pin Circuit Description
1 A0 4RD B(+)
Pin Circuit Description
1 A0 4RD B(+)
Pin Circuit Description
1 A1 8LB B(+)

Component Location - 9




Component Location - 10




Component Location - 12

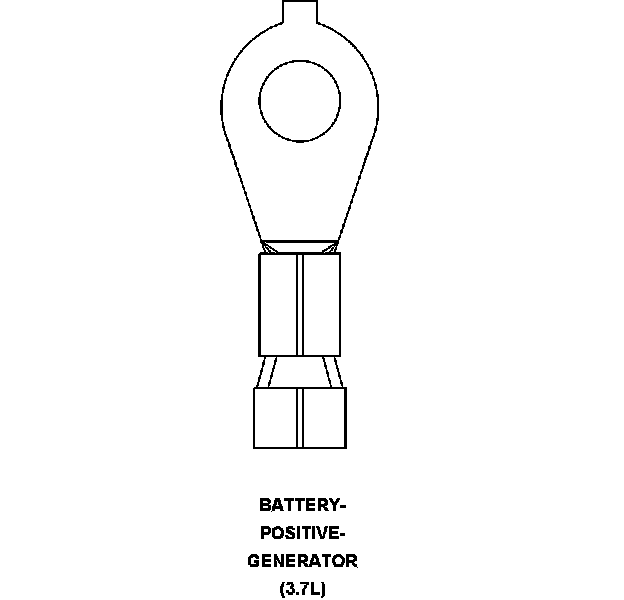

Connector:
Name : BATTERY-POSITIVE-GENERATOR
Color :
# of pins : 1
Qualifier : (3.7L)




Pin Circuit Description
1 A1 8LB B(+)

Component Location - 9




Component Location - 10




Component Location - 12






Connector:
Name : BATTERY-POSITIVE-GENERATOR
Color :
# of pins : 1
Qualifier : (DIESEL)




Pin Circuit Description
1 A1 08LB B(+)

Component Location - 9




Component Location - 10




Component Location - 12
