Windshield Washer Pump: Locations

Component ID: 223
Component : PUMP-WASHER-WINDSHIELD

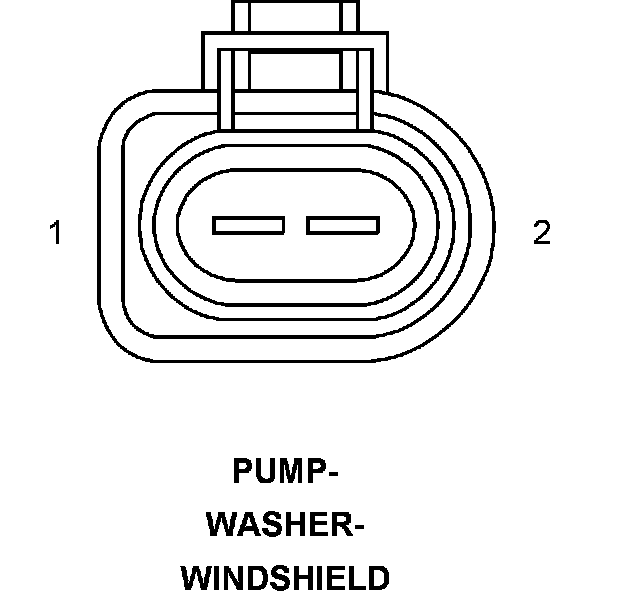

Connector:
Name : PUMP-WASHER-WINDSHIELD
Color :
# of pins : 2
Gender : FEMALE




Pin Circuit Description
1 W20 16BR/YL REAR WASHER PUMP MOTOR CONTROL
2 W10 16BR FRONT WASHER PUMP MOTOR CONTROL

Component Location - 4




Component Location - 5
