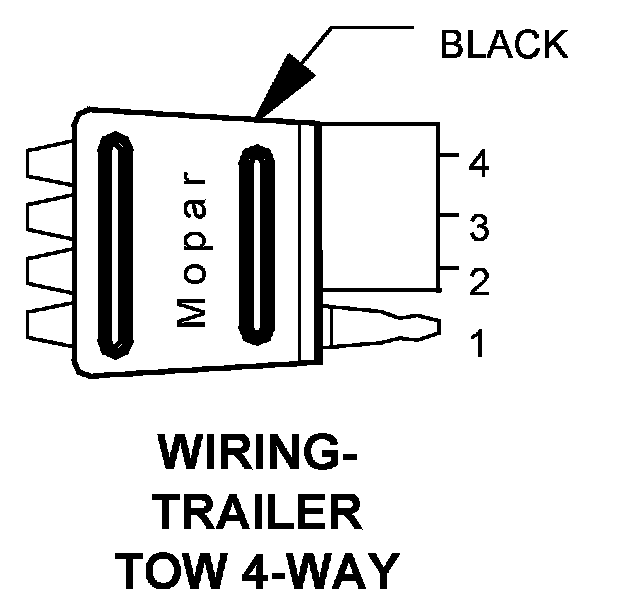

Wiring-Trailer Tow 4-Way

Component ID: 532
Component : WIRING-TRAILER TOW 4-WAY

Connector:
Name : WIRING-TRAILER TOW 4-WAY
Color : BLACK
# of pins : 4




Pin Circuit Description
1 Z927 14BK GROUND
2 L678 18BR FUSED PARK LAMP FEED
3 L673 18YL TRAILER TOW LEFT TURN RELAY OUTPUT
4 L674 18LG TRAILER TOW RIGHT TURN RELAY OUTPUT

Component Location - 70
