Engine Specifications







SPECIFICATIONS - 6.7L DIESEL

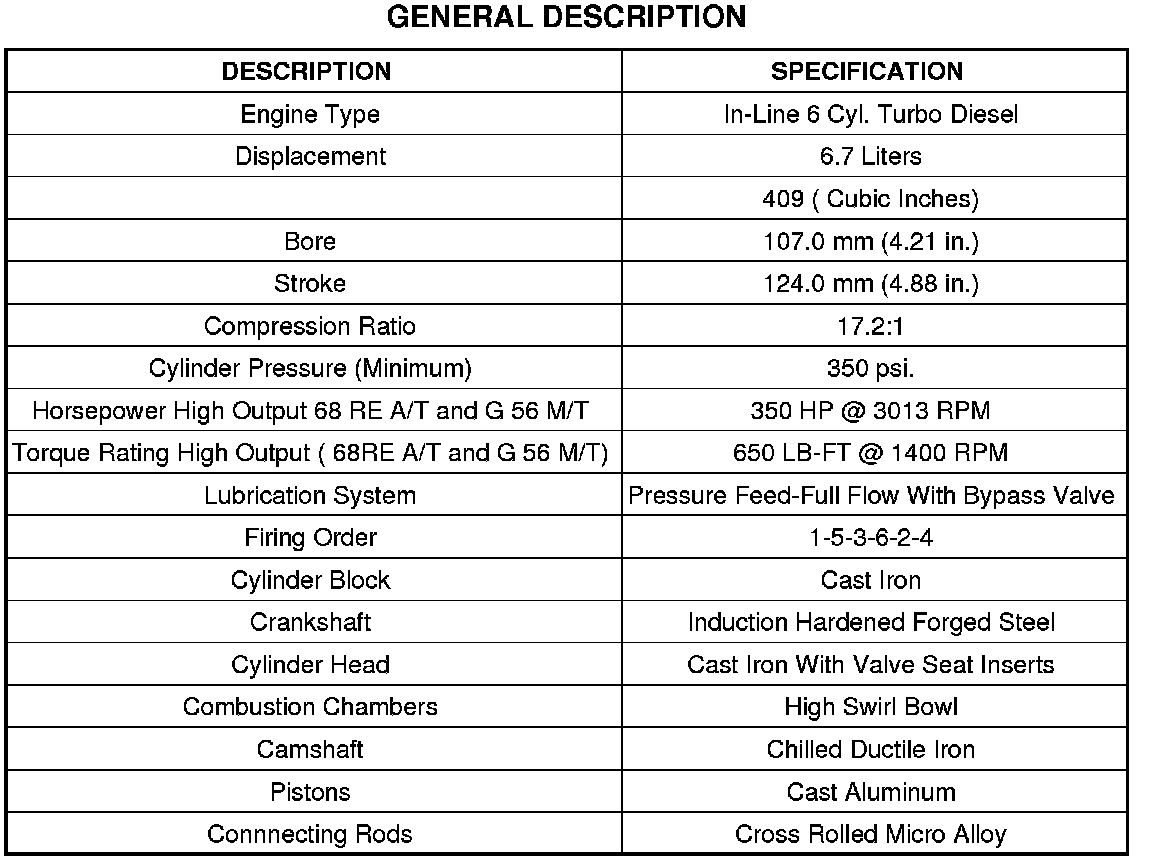

General Description:






Pistons:






Piston Pins:

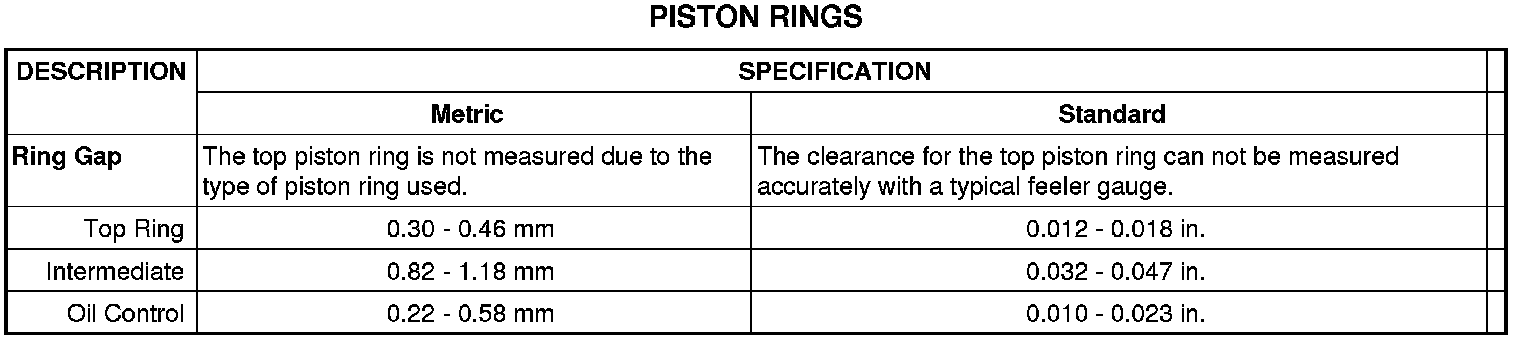

Piston Rings:






Connecting Rods:






Cylinder Head:

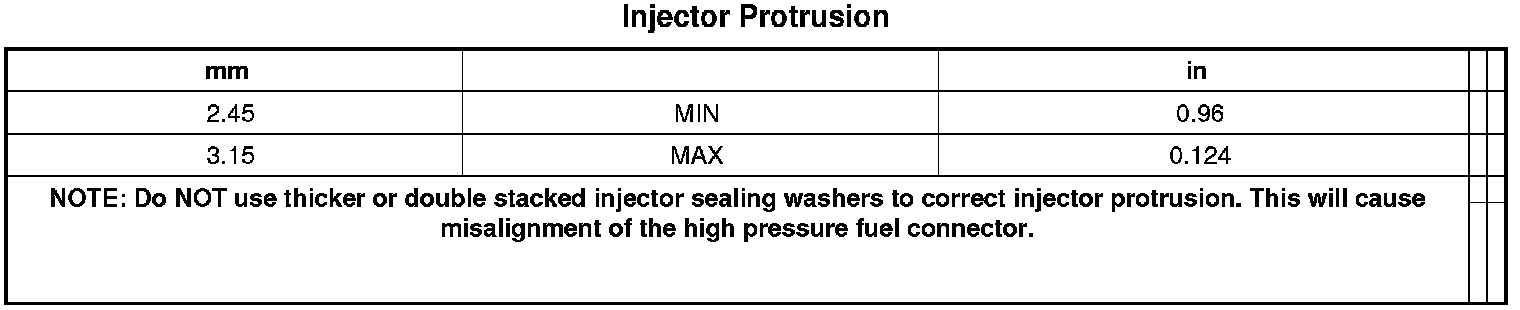

Injector Protrusion:

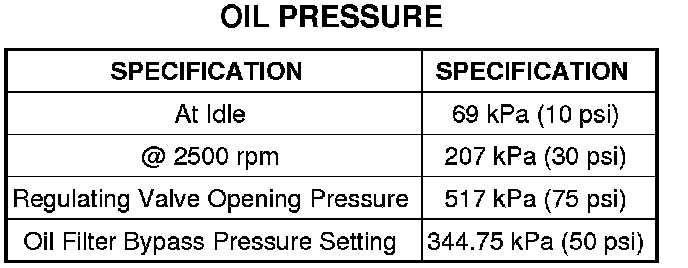

Oil Pressure:
