Exhaust Brake Switch: Diagrams

Component ID: 488

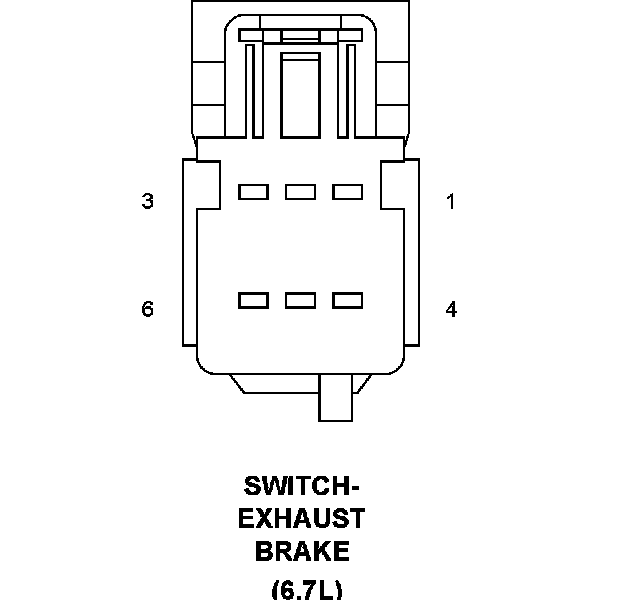

Component : SWITCH-EXHAUST BRAKE

Connector:
Name : SWITCH-EXHAUST BRAKE
Color :
# of pins : 6
Qualifier : (6.7L)




Pin Circuit Description
1 Z933 20BK/BR GROUND
2 E11 20OR/DB PANEL LAMPS DRIVER
3 G905 20BR/OR EXHAUST BRAKE SWITCH SIGNAL
4 V937 20VT/BR S/C SWITCH RETURN
5 G904 20VT/DG EXHAUST BRAKE LAMP SIGNAL
6 - -

Component Location - 47
