Driver Door Ajar Circuit Shorted To Ground







*DRIVER DOOR AJAR CIRCUIT SHORTED TO GROUND

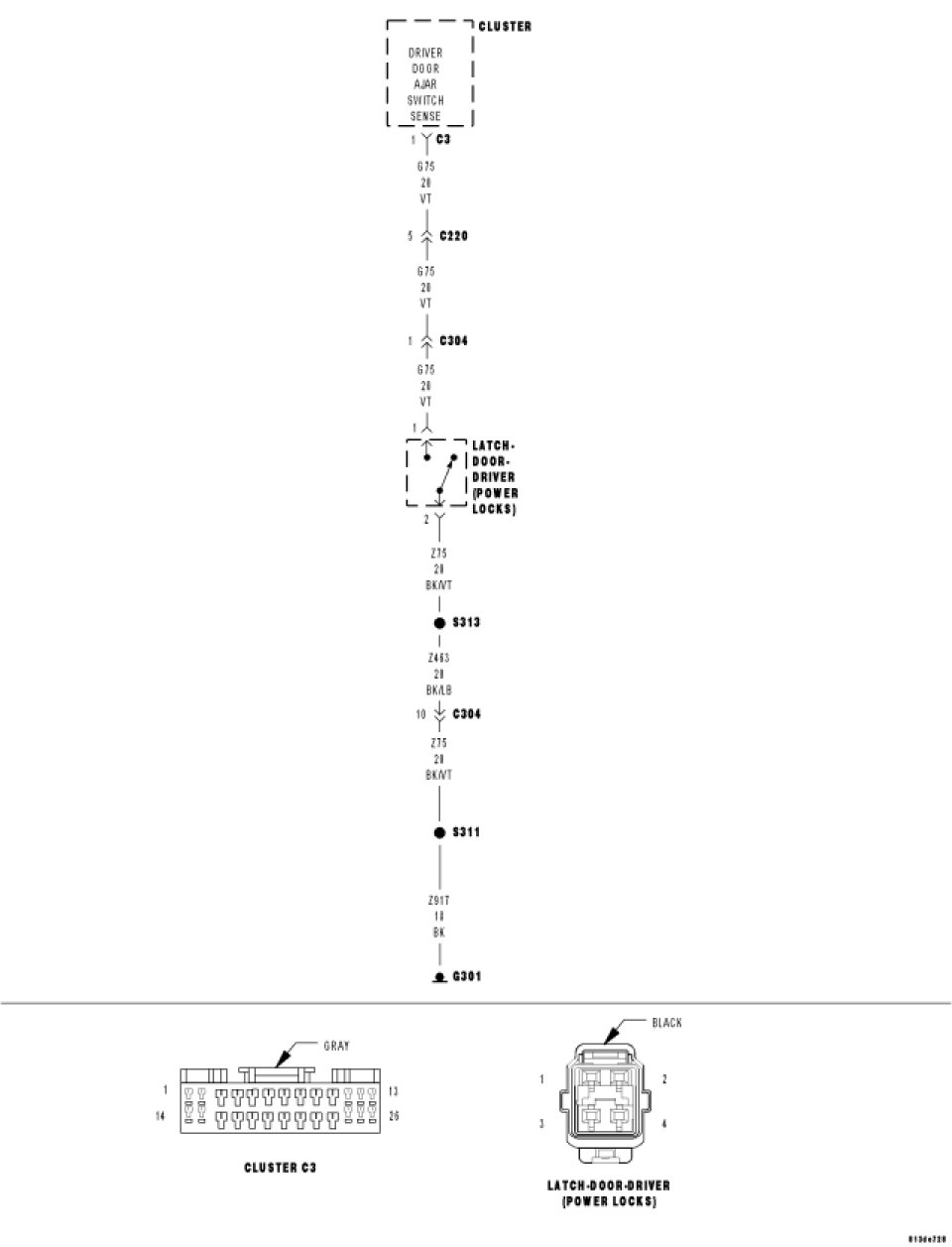

For a complete wiring diagram Refer to Diagrams/Electrical.







Diagnostic Test


1. DRIVER DOOR AJAR SWITCH SHORT TO GROUND




With the scan tool in Inputs/Outputs, read the DRV DOOR AJAR SW state.
While monitoring the scan tool, disconnect the Driver Door Latch connector.
Did the Switch State change from CLOSED to OPEN?

Yes


- Replace the Driver Door Latch.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test


No


- Go To2



2. (G75) DRIVER DOOR AJAR SWITCH SENSE CIRCUIT SHORT TO GROUND




Turn the ignition off.

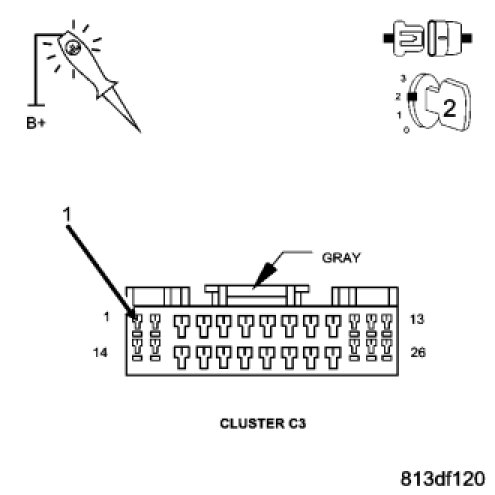

Disconnect the Instrument Cluster C3 harness connector.
Using a 12-volt test light connected to 12-volts, probe the (G75) Driver Door Ajar Switch Sense circuit and test for a short to ground.
Turn the ignition on.
Does the test light illuminate brightly?

Yes


- Repair the (G75) Driver Door Ajar Switch Sense circuit for a short to ground.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test


No


- Replace the Instrument Cluster.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
