Right Rear Door Ajar Circuit Open

*RIGHT REAR DOOR AJAR CIRCUIT OPEN





For a complete wiring diagram Refer to Diagrams/Electrical.

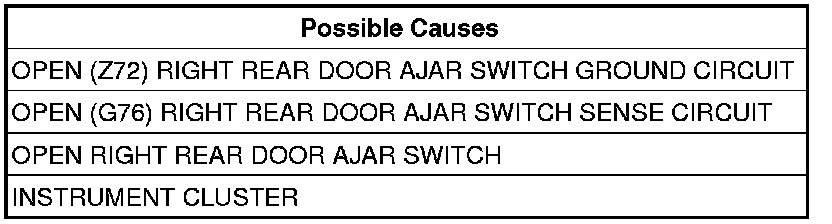

Diagnostic Test


1. OPEN RIGHT REAR DOOR AJAR SWITCH

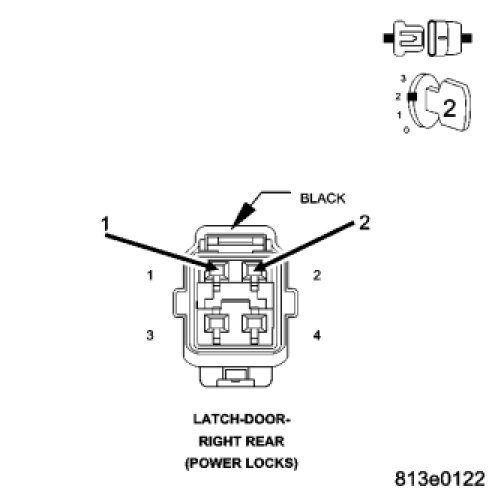

Disconnect the Right Rear Door Latch connector.
Connect a jumper wire between the (G76) Sense circuit and the (Z72) Ground circuit.
With the scan tool in Inputs/Outputs, read the R R DOOR AJAR SW state.
Does the scan tool display CLOSED?

Yes


- Replace the Right Rear Door Latch.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test


No


- Go To2



2. OPEN (Z72) RIGHT REAR DOOR AJAR SWITCH GROUND CIRCUIT

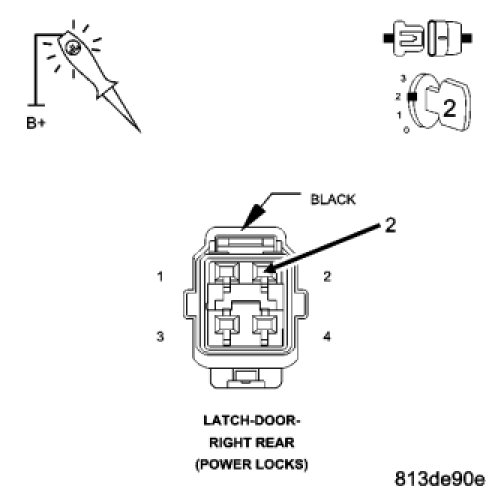

Using a 12-volt Test Light connected to 12-volts, test the (Z72) Ground circuit in the Door Latch connector.
Does the test light illuminate brightly?

Yes


- Go To3


No


- Repair the (Z72) Right Rear Door Ajar Switch Ground circuit for an open.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test



3. OPEN (G76) RIGHT REAR DOOR AJAR SWITCH SENSE CIRCUIT




Disconnect the Instrument Cluster C3 harness connector.

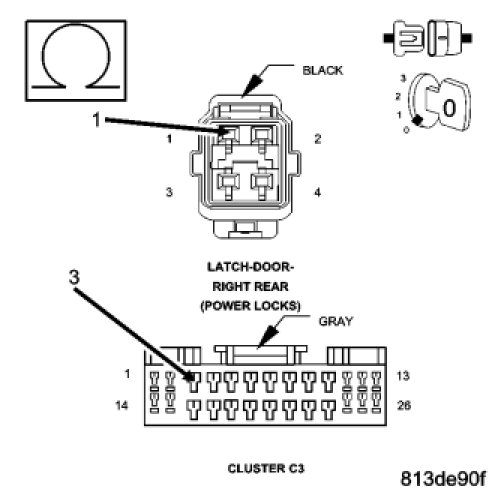

Measure the resistance of the (G76) Right Rear Door Ajar Switch Sense circuit between the Instrument Cluster connector and the Door Latch connector.
Is the resistance below 5.0 ohms?

Yes


- Replace the Instrument Cluster.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test


No


- Repair the (G76) Right Rear Door Ajar Switch Sense circuit for an open.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
