Right Rear Door Ajar Circuit Shorted To Ground

*RIGHT REAR DOOR AJAR CIRCUIT SHORTED TO GROUND

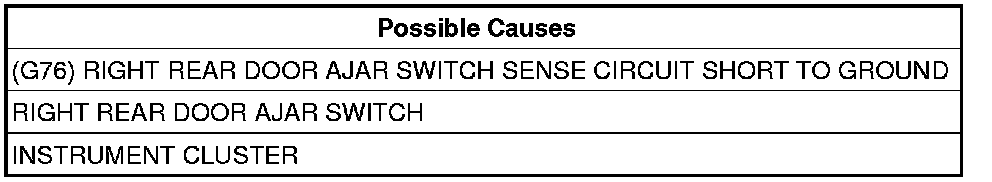

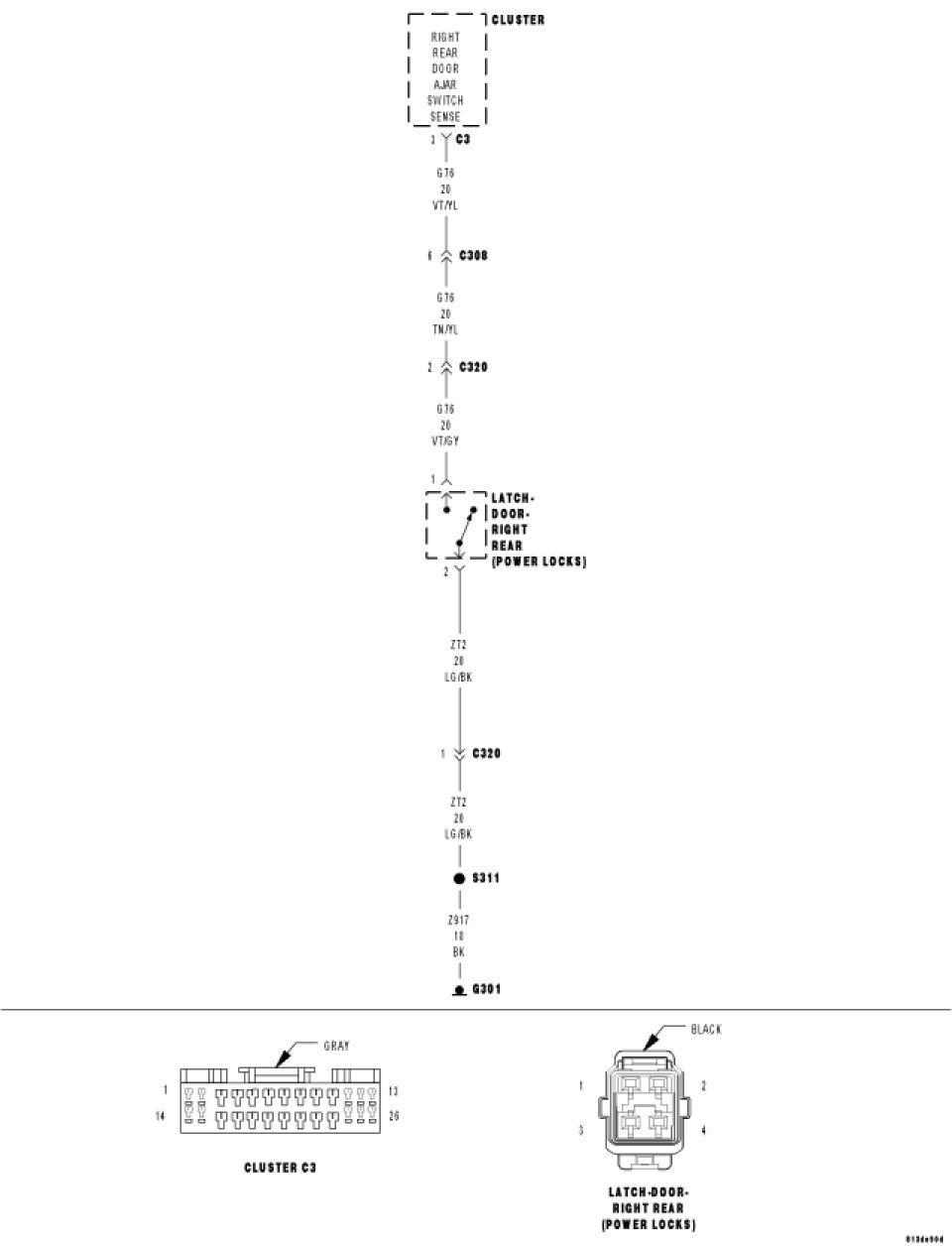

For a complete wiring diagram Refer to Diagrams/Electrical.







Diagnostic Test


1. RIGHT REAR DOOR AJAR SWITCH SHORT TO GROUND




With the scan tool in Inputs/Outputs, read the R R DOOR AJAR SW state.

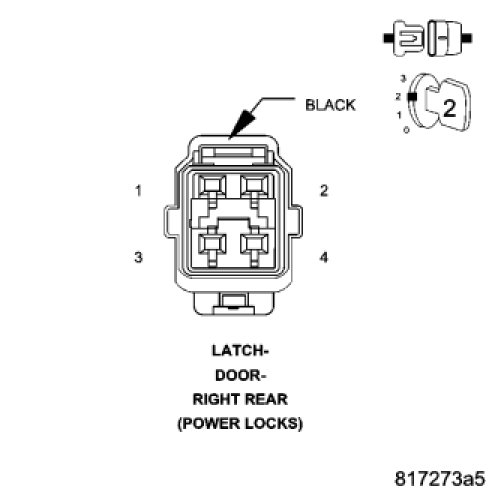

While monitoring the scan tool, disconnect the Right Rear Door Latch connector.
Did the Switch State change from CLOSED to OPEN?

Yes


- Replace the Right Rear Door Ajar Switch.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test


No


- Go To2



2. (G76) RIGHT REAR DOOR AJAR SWITCH SENSE CIRCUIT SHORT TO GROUND




Disconnect the Instrument Cluster C3 harness connector.
Using a 12-volt test light connected to 12-volts, probe the (G76) Right Rear Door Ajar Switch Sense circuit and test for a short to ground.
Does the test light illuminate brightly?

Yes


- Repair the (G76) Right Rear Door Ajar Switch Sense circuit for a short to ground.
- Perform BODY VERIFICATION TEST - VER 1 Body Verification Test


No


- Replace the Instrument Cluster.
- Perform BODY VERIFICATION TEST - VER 1 Body Verification Test
