Auxiliary Power Outlet: Locations

Component ID: 236

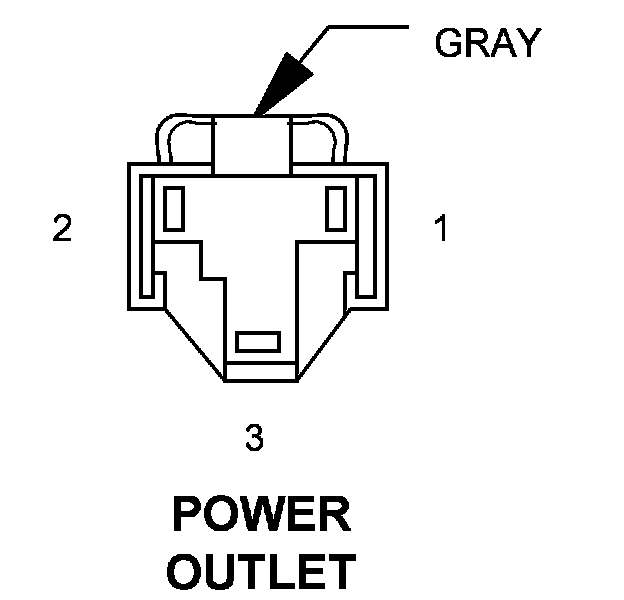

Component : POWER OUTLET

Connector:
Name : POWER OUTLET
Color : GRAY
# of pins : 3




Pin Circuit Description
1 A205 18RD/OR FUSED B(+)
2 - -
3 Z737 18BK/LB GROUND

Component Location - 47
