EGR Cooler

Component ID: 530

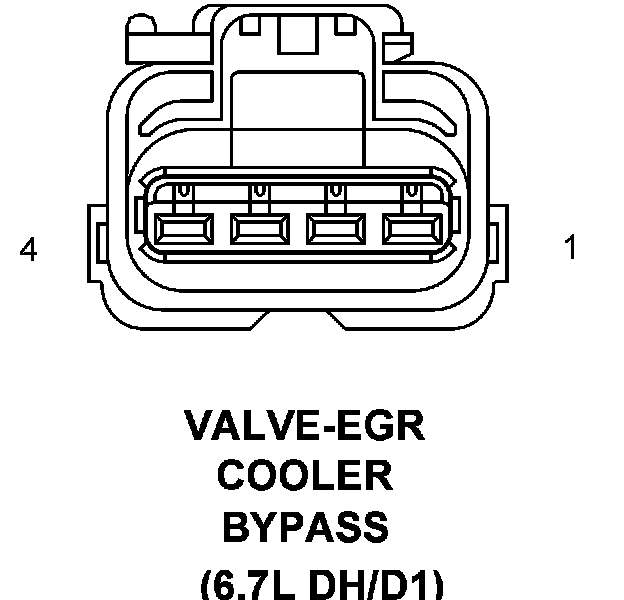

Component : VALVE-EGR COOLER BYPASS

Connector:
Name : VALVE-EGR COOLER BYPASS
Color :
# of pins : 4
Qualifier : (6.7L DH/D1)




Pin Circuit Description
1 K671 18BR/DB EGR BYPASS STATUS
2 K670 18BR/LB EGR BYPASS VALVE SIGNAL
3 F348 16PK/OR SMART POWER RELAY FEED
4 K972 18DB/TN ACTUATOR GROUND
