Fuel Heater

Component ID: 142

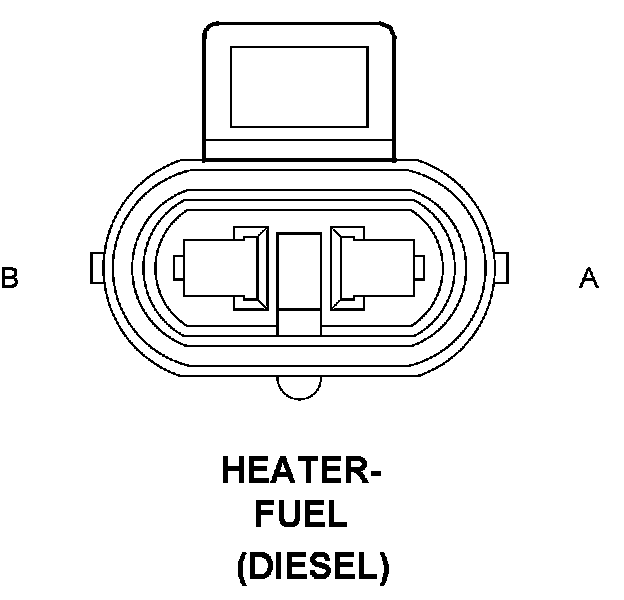

Component : HEATER-FUEL

Connector:
Name : HEATER-FUEL
Color :
# of pins : 2
Qualifier : (DIESEL)




A Z902 14BK GROUND
A Z816 14BK GROUND
B A961 14RD FUEL HEATER CONTROL OUTPUT

Component Location - 12




Component Location - 14
