Fuel Inlet Metering Valve, Diesel

Component ID: 4
Component : ACTUATOR-FUEL CONTROL

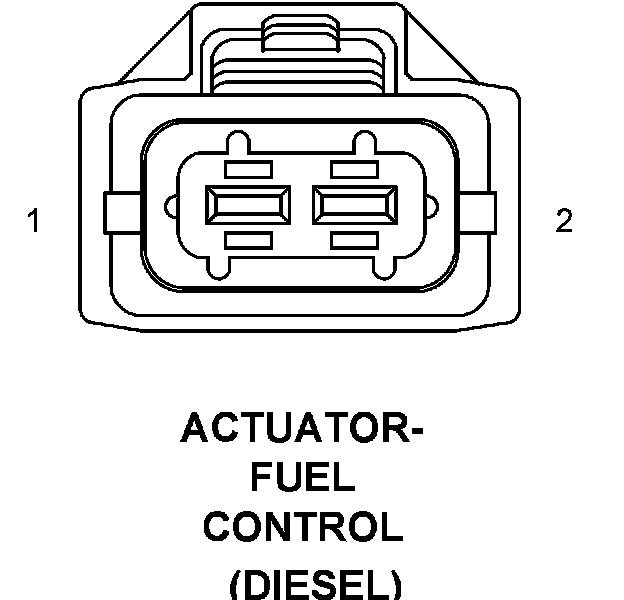

Connector:
Name : ACTUATOR-FUEL CONTROL
Color :
# of pins : 2
Qualifier : (DIESEL)




Pin Circuit Description
1 K604 18BR/TN FUEL CONTROL ACTUATOR DRIVER
Pin Circuit Description
1 K365 18DB/BR FUEL CONTROL ACTUATOR DRIVER
2 K65 18BR/LB FUEL CONTROL ACTUATOR RETURN
2 K366 18BR/LB FUEL CONTROL ACTUATOR RETURN

Component Location - 12




Component Location - 13
