Latch-Door-Driver

Component ID: 188
Component : LATCH-DOOR-DRIVER

Connector:

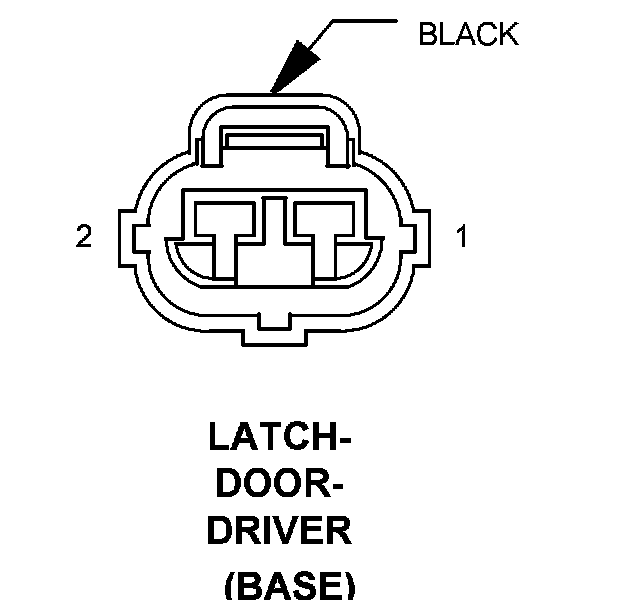

Name : LATCH-DOOR-DRIVER
Color : BLACK
# of pins : 2
Qualifier : (BASE)




Pin Circuit Description
1 G75 20VT DRIVER DOOR AJAR SWITCH SENSE
2 Z917 20BK GROUND

Component Location - 55

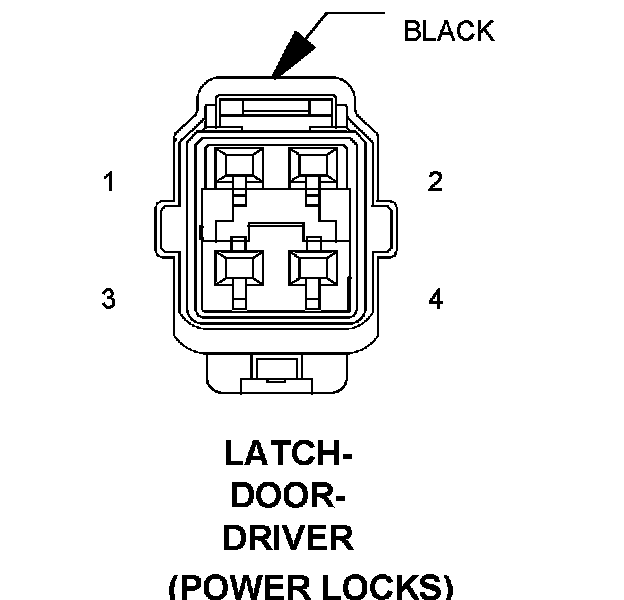

Connector:
Name : LATCH-DOOR-DRIVER
Color : BLACK
# of pins : 4
Qualifier : (POWER LOCKS)




Pin Circuit Description
1 G75 20VT DRIVER DOOR AJAR SWITCH SENSE
2 Z917 20BK GROUND
3 P1 18TN/LG DOOR UNLOCK DRIVER LEFT FRONT
4 P393 18LG DOOR LOCK DRIVER LEFT DOORS

Component Location - 55
