Wastegate Actuator

Component ID: 3

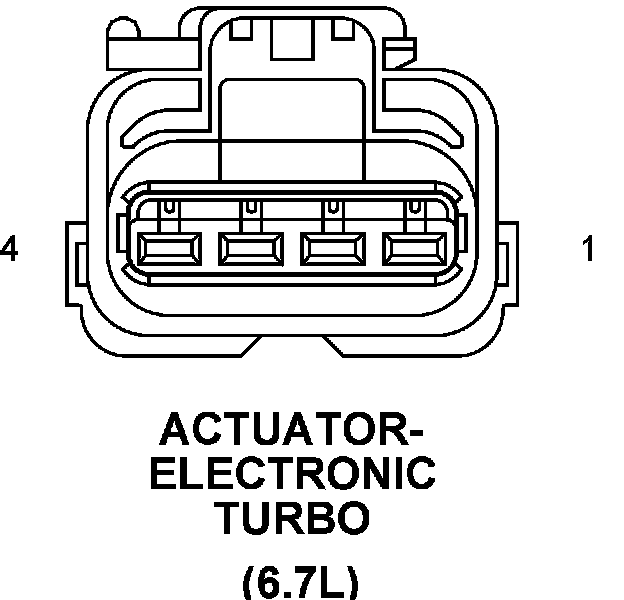

Component : ACTUATOR-ELECTRONIC TURBO

Connector:
Name : ACTUATOR-ELECTRONIC TURBO
Color :
# of pins : 4
Qualifier : (6.7L)




Pin Circuit Description
1 F348 16PK/OR SMART POWER RELAY FEED
2 K972 18DB/TN ACTUATOR GROUND
3 D130 18BR/VT ACTUATOR HIGH DATA LINK
4 D131 18WT/LG ACTUATOR LOW DATA LINK

Component Location - 16
