Water In Fuel Sensor

Component ID: 447
Component : SENSOR-WATER IN FUEL

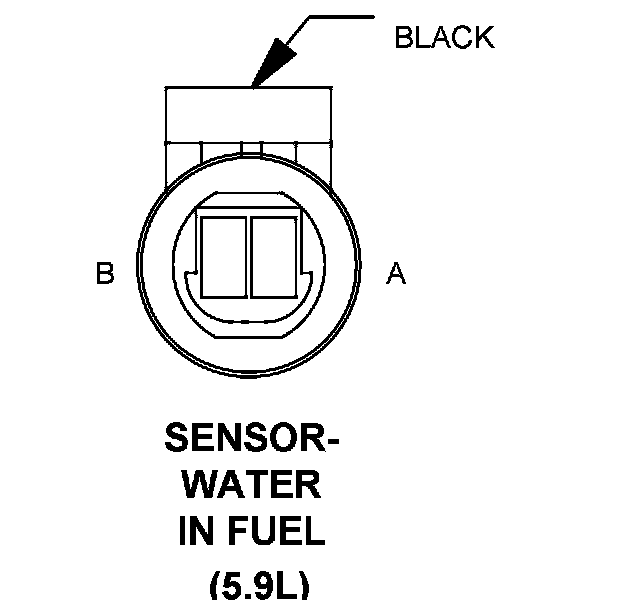

Connector:
Name : SENSOR-WATER IN FUEL
Color : BLACK
# of pins : 2
Qualifier : (5.9L)




A K923 18BR/WT WATER IN FUEL SENSOR GROUND
B G123 18VT/LG WATER IN FUEL SENSOR SIGNAL

Component Location - 18




Component Location - 14






Connector:
Name : SENSOR-WATER IN FUEL
Color :
# of pins : 2
Qualifier : (6.7L)




Pin Circuit Description
1 K914 18BR/WT SENSOR GROUND
2 G123 18VT/LG WATER IN FUEL SENSOR SIGNAL

Component Location - 18




Component Location - 14
