Passenger Door Ajar Circuit Open

*PASSENGER DOOR AJAR CIRCUIT OPEN





For a complete wiring diagram Refer to Diagrams/Electrical.







Diagnostic Test


1. OPEN PASSENGER DOOR AJAR SWITCH

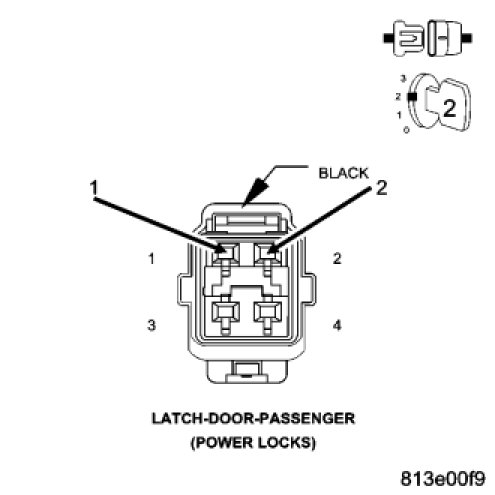

Disconnect the Passenger Door Latch connector.
Connect a jumper wire between the (G74) Sense circuit and the (Z74/Z917) Ground circuit.
With the scan tool in Inputs/Outputs, read the PASS DOOR AJAR SW state.
Does the scan tool display CLOSED?

Yes


- Replace the Passenger Door Latch.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test


No


- Go To2



2. OPEN (Z74/Z917) PASSENGER DOOR AJAR SWITCH GROUND CIRCUIT

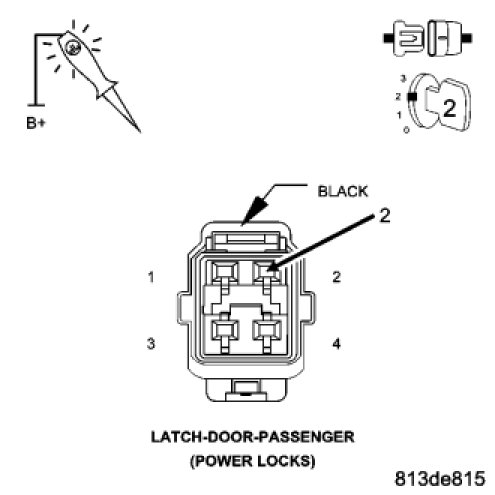

Using a 12-volt Test Light connected to 12-volts, test the (Z74/Z917) Ground circuit in the Door Latch connector.
Does the test light illuminate brightly?

Yes


- Go To3


No


- Repair the (Z74/Z917) Passenger Door Ajar Switch Ground circuit for an open.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test



3. OPEN (G74) PASSENGER DOOR AJAR SWITCH SENSE CIRCUIT




Turn the ignition off.
Disconnect the Instrument Cluster C3 harness connector.

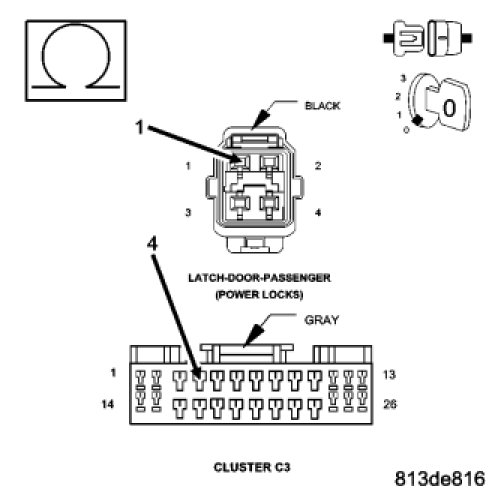

Measure the resistance of the (G74) Passenger Door Ajar Switch Sense circuit between the Instrument Cluster connector and the Door Latch connector.
Is the resistance below 5.0 ohms?

Yes


- Replace the Instrument Cluster.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test


No


- Repair the (G74) Passenger Door Ajar Switch Sense circuit for an open.
- Perform BODY VERIFICATION TEST - VER 1. Body Verification Test
