Battery-Auxiliary

Component ID: 27
Component : BATTERY-AUXILIARY

Connector:

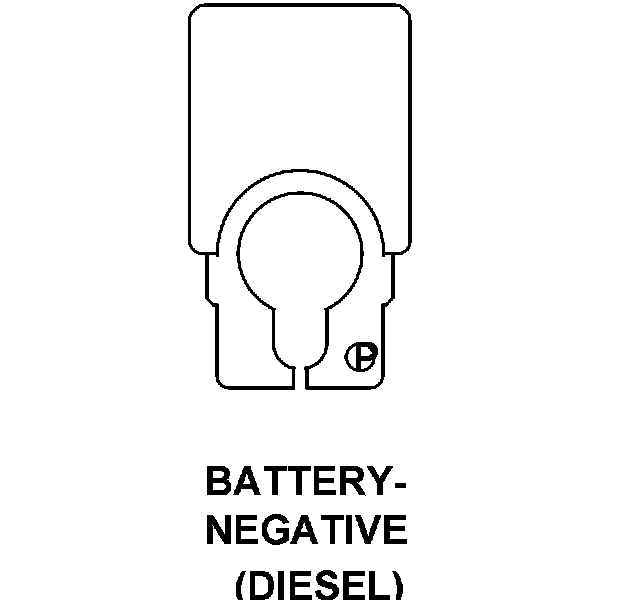

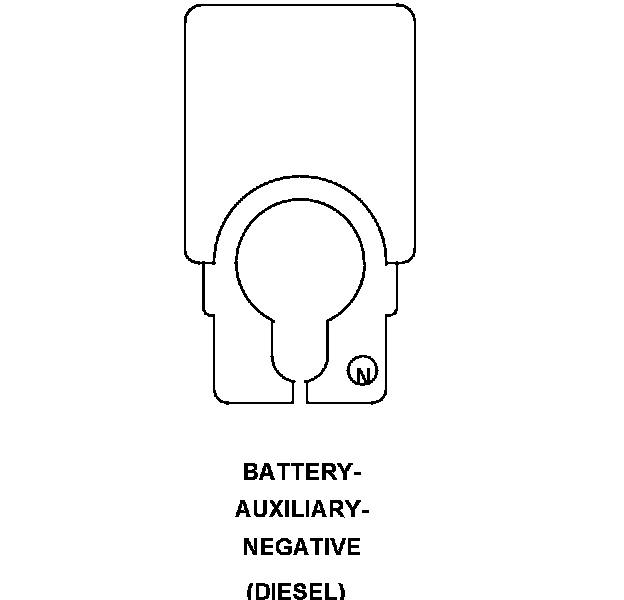

Name : BATTERY-AUXILIARY-NEGATIVE
Color :
# of pins : 1
Qualifier : (DIESEL)




Pin Circuit Description
1 Z0 8BK GROUND
2 Z0 1BK GROUND

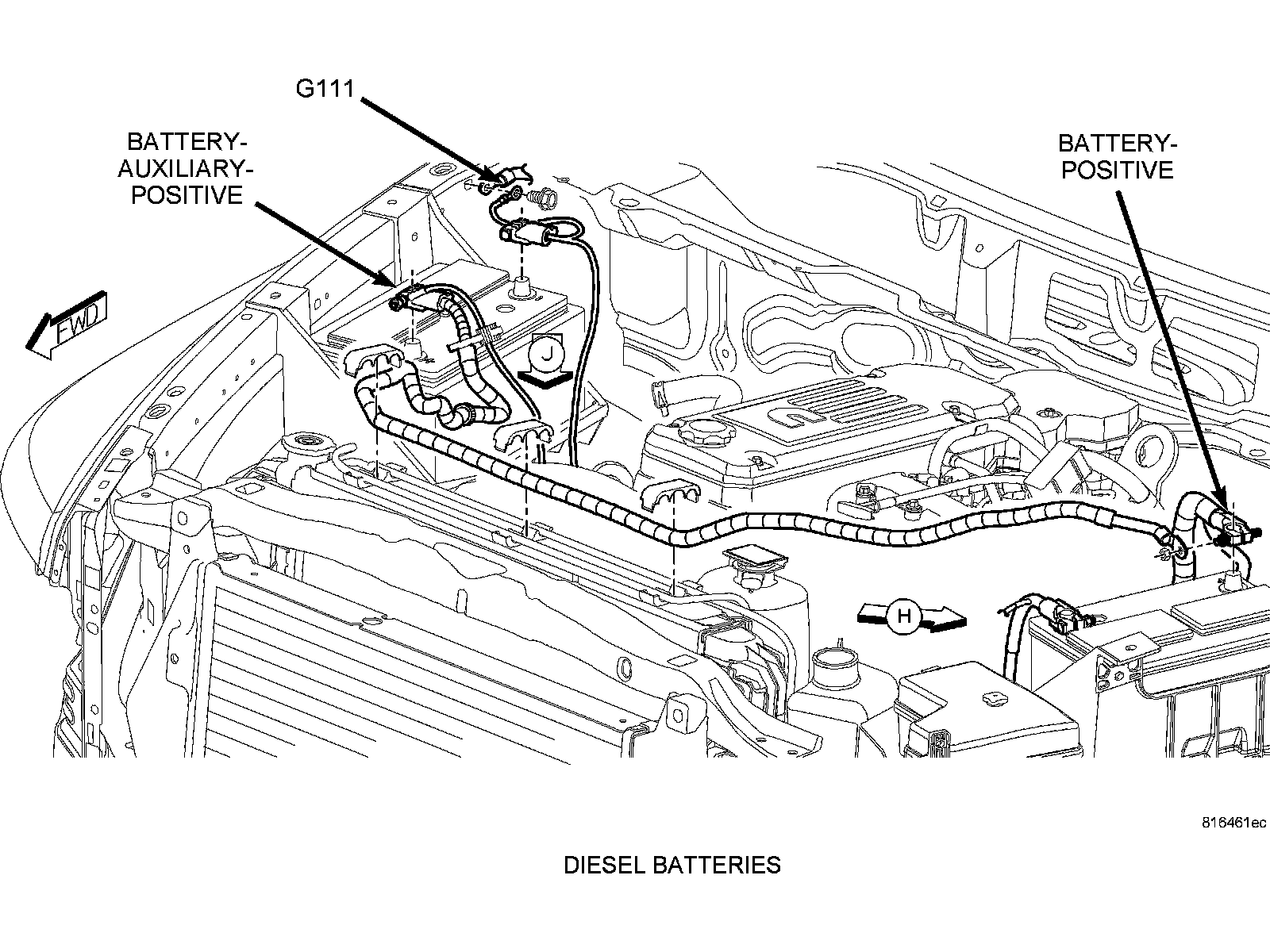

Component Location - 17






Connector:

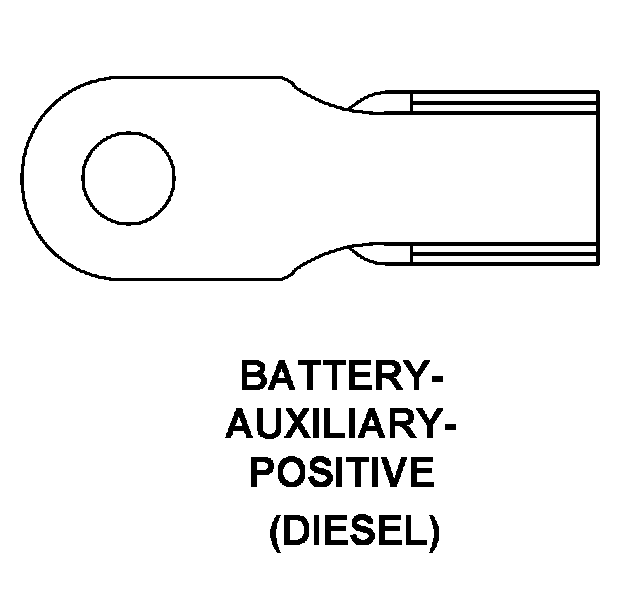

Name : BATTERY-AUXILIARY-POSITIVE
Color :
# of pins : 1
Qualifier : (DIESEL)




Pin Circuit Description
1 A1 01RD FUSED B(+)

Component Location - 17






Connector:
Name : BATTERY-AUXILIARY-POSITIVE
Color :
# of pins : 1
Qualifier : (DIESEL)




Pin Circuit Description
1 A19 4RD/YL B(+)

Component Location - 17






Connector:
Name : BATTERY-AUXILIARY-POSITIVE
Color :
# of pins : 1
Qualifier : (DIESEL)




Pin Circuit Description
1 A19 4BK B(+)

Component Location - 17






Connector:
Name : BATTERY-AUXILIARY-POSITIVE
Color :
# of pins : 1
Qualifier : (DIESEL)




Pin Circuit Description
1 A11 6LB B(+)

Component Location - 17






Connector:
Name : BATTERY-AUXILIARY-POSITIVE
Color :
# of pins : 1
Qualifier : (DIESEL)




Pin Circuit Description
1 A11 8LB B(+)

Component Location - 17
