Home
>>
Dodge or Ram Truck
>>
2009
>>
Nitro 2WD V6-4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
>>
Shifter A/T
Shifter A/T

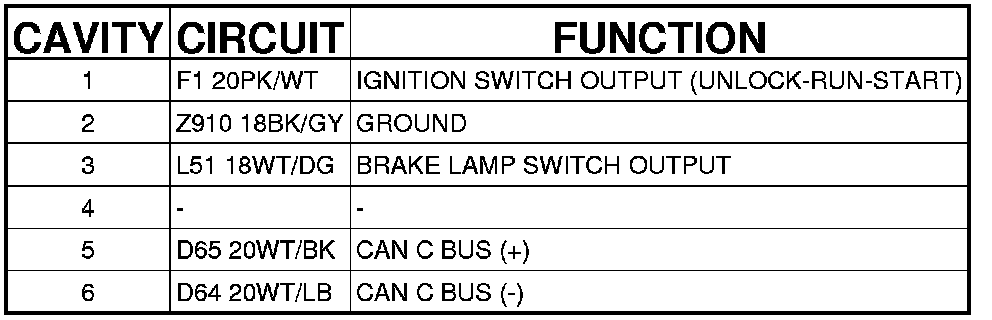

Connector (NAG 1) - (INSTRUMENT PANEL) 6 WAY
ASSEMBLY-SHIFT LEVER (NAG 1) - (INSTRUMENT PANEL) 6 WAY
