C317 (Front Door Side) 13 Way
C317 (Front Door Side) 13 Way
Connector - (FRONT DOOR SIDE) 13 WAY

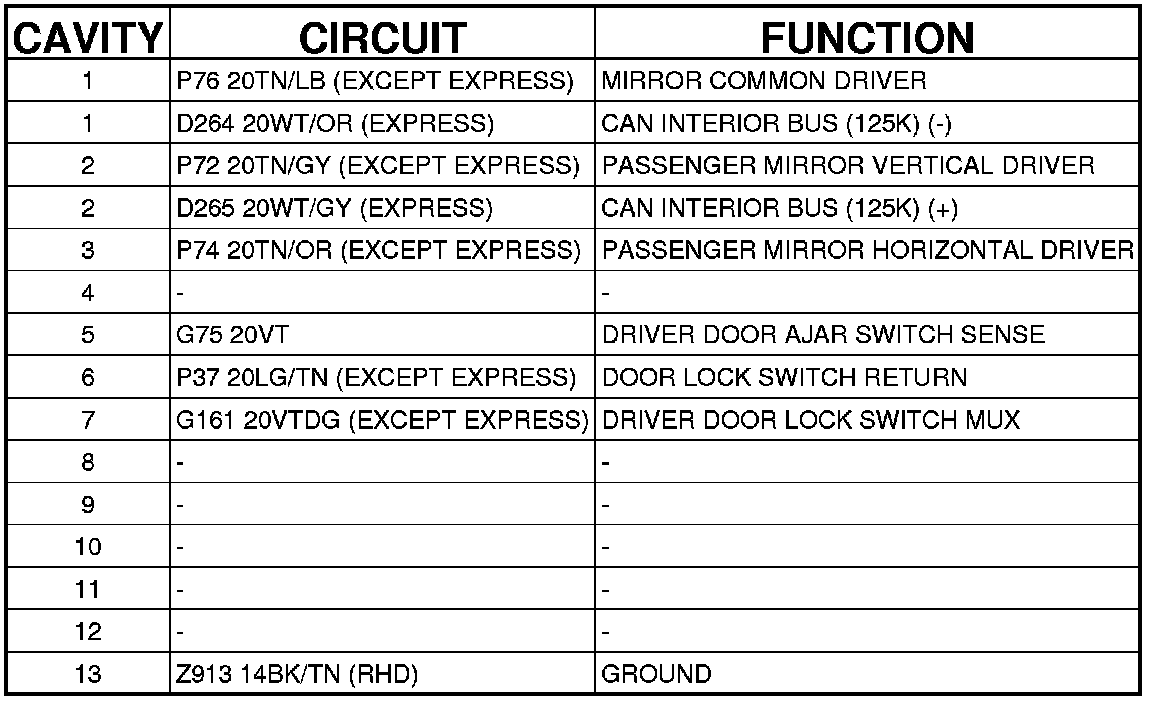

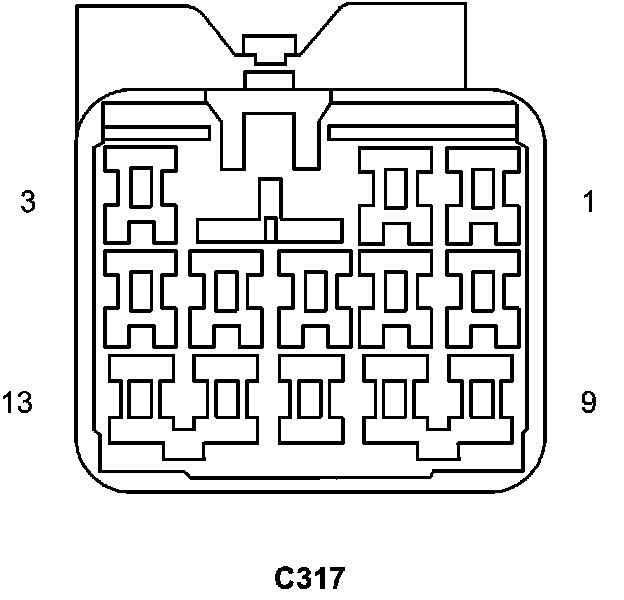

C317 - (FRONT DOOR SIDE) 13 WAY
