Ignition Coil 1 (4.0L) (Powertrain) 3 Way
Ignition Coil 1 (4.0L) (Powertrain) 3 Way
Connector (4.0L) - (POWERTRAIN) 3 WAY

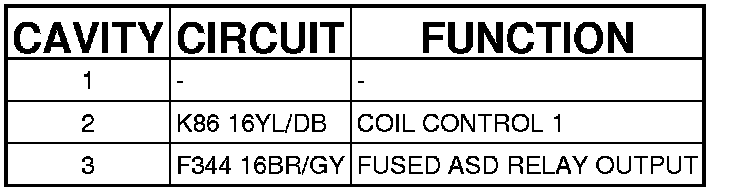

COIL-IGNITION 1 (4.0L) - (POWERTRAIN) 3 WAY
