Left Front Seat Weight Sensor (Except Export) (Passenger Seat) 3 Way

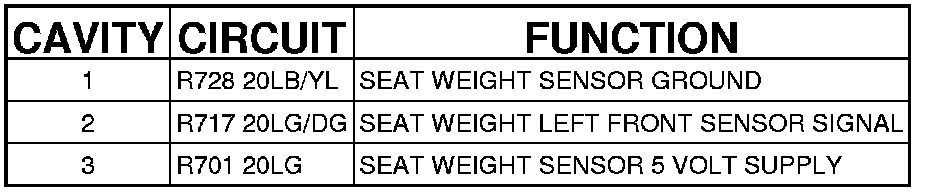

Connector (EXCEPT EXPORT) - (PASSENGER SEAT) 3 WAY

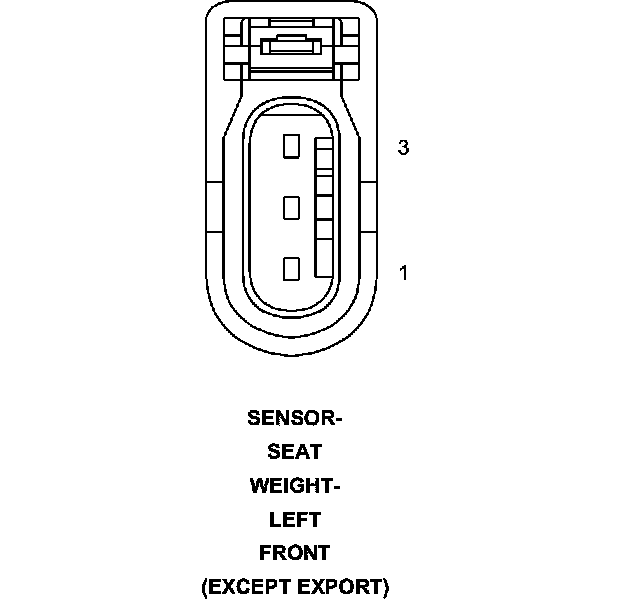

SENSOR-SEAT WEIGHT-LEFT FRONT (EXCEPT EXPORT) - (PASSENGER SEAT) 3 WAY
