Left Rear Tire Pressure Transponder (Body) 6 Way
Left Rear Tire Pressure Transponder (Body) 6 Way

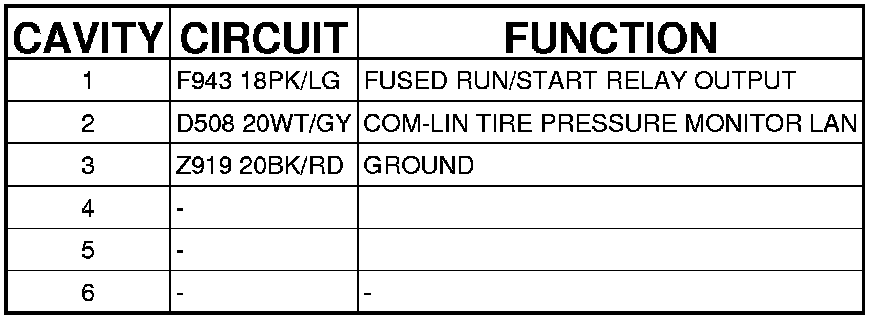

Connector - (BODY) 6 WAY

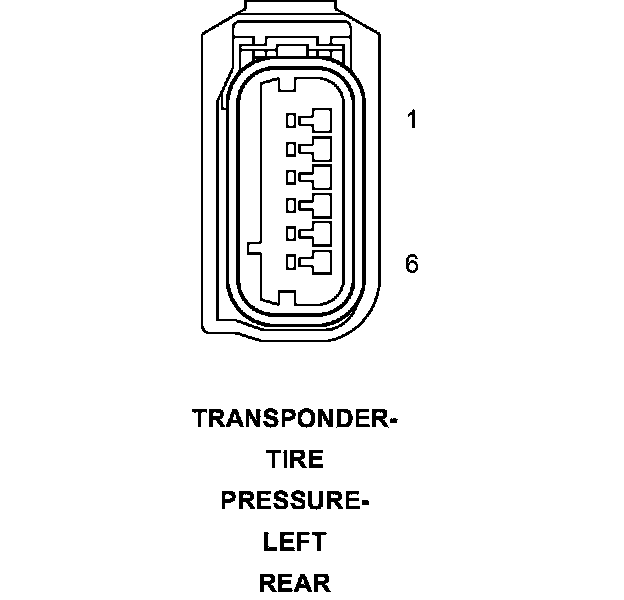

TRANSPONDER-TIRE PRESSURE-LEFT REAR - (BODY) 6 WAY
