Instruments - Clock Loses Over 2 Minutes A Month
NUMBER: 08-003-13GROUP: Electrical
DATE: January 15, 2013
SUBJECT:
Clock In The Radio Loses Time
OVERVIEW:
This bulletin involves replacing the Wireless Control Module (WCM)/Sentry Key Remote Entry Module (SKREEM).
MODELS:
2009 - 2012 (JK) Wrangler
2009 - 2012 (KK) Liberty
2009 - 2011 (KA) Nitro
SYMPTOM/CONDITION:
Customer may experience a condition where the clock will lose over two minutes a month.
DIAGNOSIS:
If the customer describes the symptom, perform the Repair Procedure.

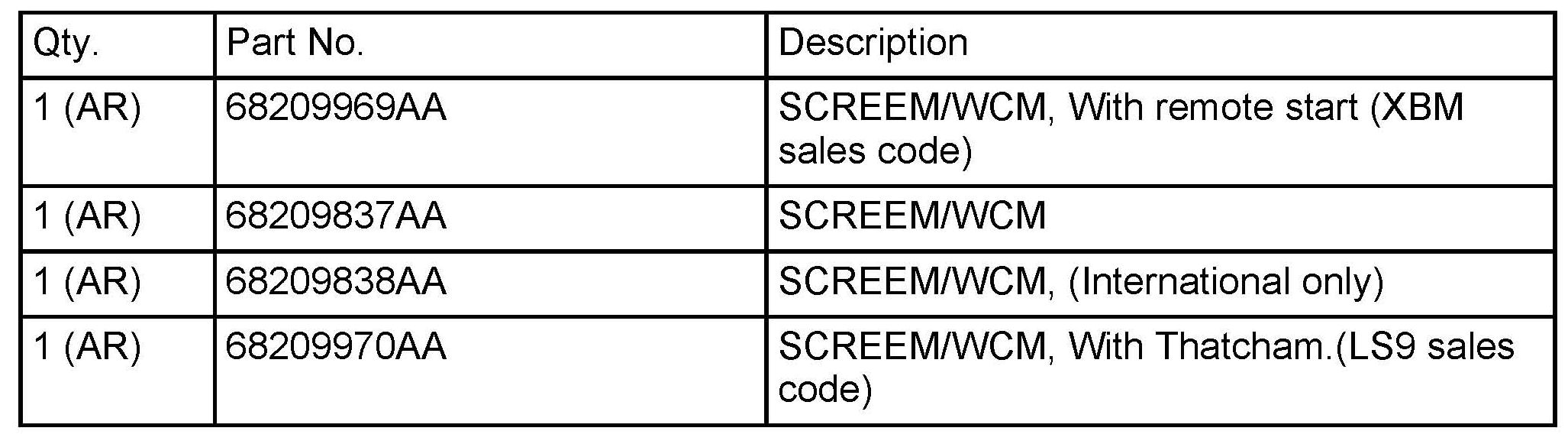

PARTS REQUIRED:
REPAIR PROCEDURE
1. Replace the WCM/SCREEM, follow the remove and installation procedure per TechConnect: Vehicle Theft Security/MODULE, Sentry Key Immobilizer (SKREEM)/Removal/installation.
2. Make sure to read and follow all notes regarding key Transponders and Tire pressure sensor reprogramming.
3. Clear all codes that may have been set during the replacement procedure.
POLICY:
Reimbursable within the provisions of the warranty.
TIME ALLOWANCE:

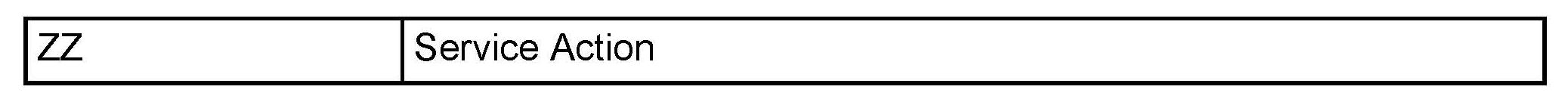

FAILURE CODE:
Disclaimer:
This bulletin is supplied as technical information only and is not an authorization for repair.
