Driver Outside Rearview Mirror (Express Up) (Component Side) 10 Way






Connector (EXPRESS UP) - (COMPONENT SIDE) 10 WAY

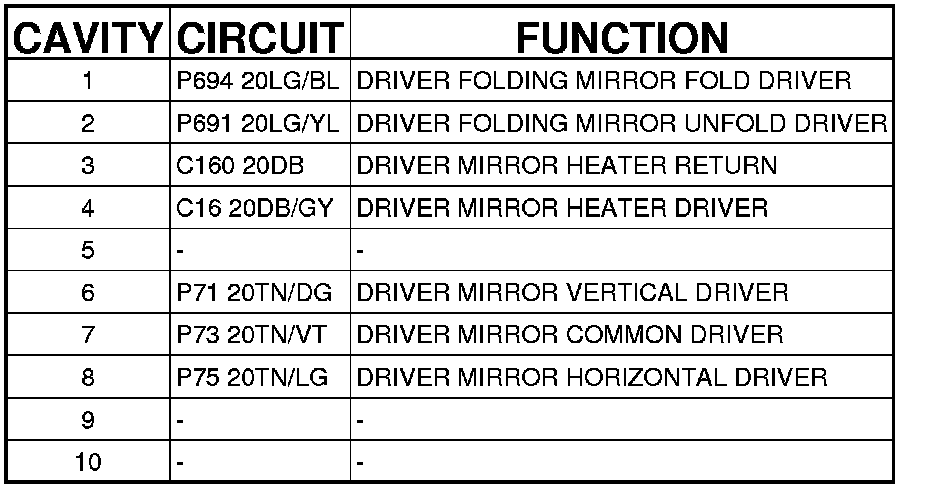

MIRROR-OUTSIDE REARVIEW-DRIVER (EXPRESS UP) - (COMPONENT SIDE) 10 WAY
