Right Rear Seat Weight Sensor (Except Export) (Passenger Seat) 3 Way

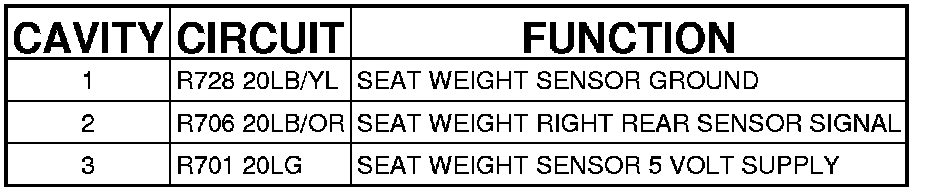

Connector (EXCEPT EXPORT) - (PASSENGER SEAT) 3 WAY

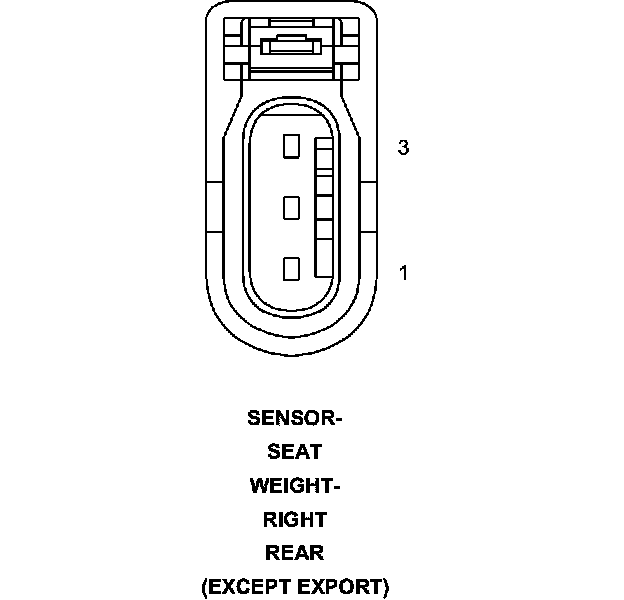

SENSOR-SEAT WEIGHT-RIGHT REAR (EXCEPT EXPORT) - (PASSENGER SEAT) 3 WAY
